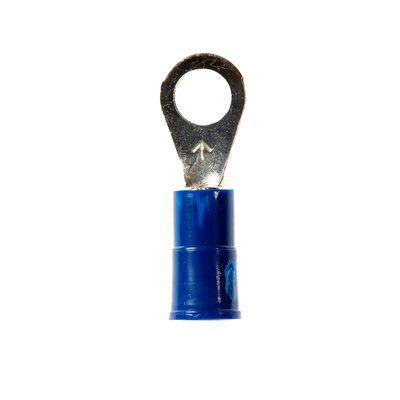

3M MV14-10R/LX 100/Bottle Vinyl Insulated Ring
Product image thumbnail 0
Product image thumbnail 1
Usually available within 6 to 8 Days
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV14-10R/LX
Viking Electric Part # 44403

Features

  • Blue vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 3M™ Scotchlok™ Color-Coded Large Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Standard-style ring tongue fits around the stud
  • Stud size #10
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611458946
  • Manufacturing Origin: USA
  • Brand: Scotchlok™
  • Color Family: Blue
  • Connection Width (Imperial): 0.19 in
  • Connection Width (Metric): 4.826 mm
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Overall Length (Imperial): 0.93 in
  • Overall Length (Metric): 23.62 mm
  • Overall Width (Imperial): 0.31 in
  • Overall Width (Metric): 7.87 mm
  • Product Color: Blue
  • Terminal Type: Ring

Overview

UPC 05112858749
Long Description Ring Vinyl Insulated, 100/bottle, MV14-10R/LX
GTiN 00051128587492
Length 0.93 in
Finish Tin Plated
Width 0.31 in
Color Blue
Type Ring
Thickness 0.03 in
Barrel Type Brazed
Material PVC
Stud Size 10
Terminal Style Standard
Terminal Type Ring
Conductor Size 16 To 14 AWG
Barrel Diameter 0.09 in ID
Temperature Rating -40 to 105 C
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 16 - 14 AWG
Barrel Length 0.45 in
Sub Brand Scotchlok
Voltage 600 Volt
Max Operating Temperature 105 C
Overall Length 0.93 in
