Overview

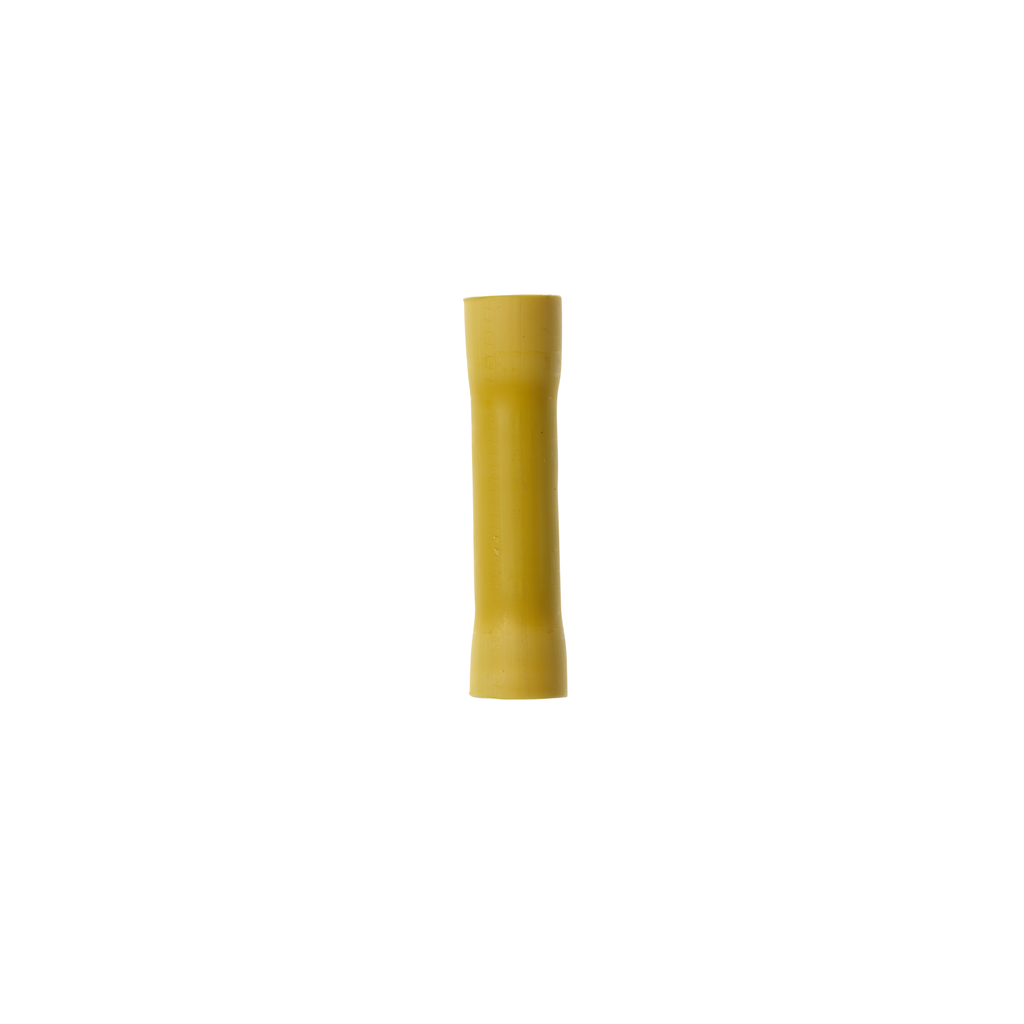

3M™ Scotchlok™ Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, seamless barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). The electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Butt Connector is color-coded for quick and easy identification of the wire size required. The connector has a vinyl-insulated, seamless barrel and provides electrical connection to a pre-stripped end of a stranded wire. It has chamfered barrel ends that enable fast, simple wire insertion and allows for correct positioning with built-in wire stop. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
- Yellow vinyl-insulated, seamless barrel ensures a secure fit and offers reliable performance
- Offers electrical connection to a pre-stripped end of a stranded wire
- Built-in wire stop for correct positioning
- Accommodates wire sizes 12 to 10 AWG
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- 25/carton, 125/case
Specifications
- 3M ID: 80611464134
- Agency Approvals: UL and CSA
- Barrel Length: 0.38 Inch
- Barrel Style: Seamless
- Brand: Scotchlok™
- Color: Yellow
- Conductor Size: 12 - 10 AWG
- Connection Type: Butt
- CSA File Number: LR22190
- Insulation Material: Vinyl
- Length: 1.2 Inch
- Length (Metric): 30.48
- Maximum Insulation Outer Diameter: 0.218 Inch
- Maximum Operating Temperature (Celsius): 105 Degree Celsius
- Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
- Maximum Recommended Voltage Rating: 600 V
- Maximum Wire Gauge: 10 AWG
- Minimum Wire Gauge: 12 AWG
- National Stock Number: 5940010791936
- Operating Temperature Range (Celsius): -40 °C to 105 °C
- Packaging: 50 per bottle
- Product Type: Connector
- RoHS 2011/65/EU Compliant: Yes
- RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
- Solution for: Wireless Network: Infrastructure Accessories
- Terminal Style: Standard
- Terminal Type: Butt Connectors
- Thickness: 0.038 Inch
- Trademark: Scotchlok
- UL File Number: E23438
