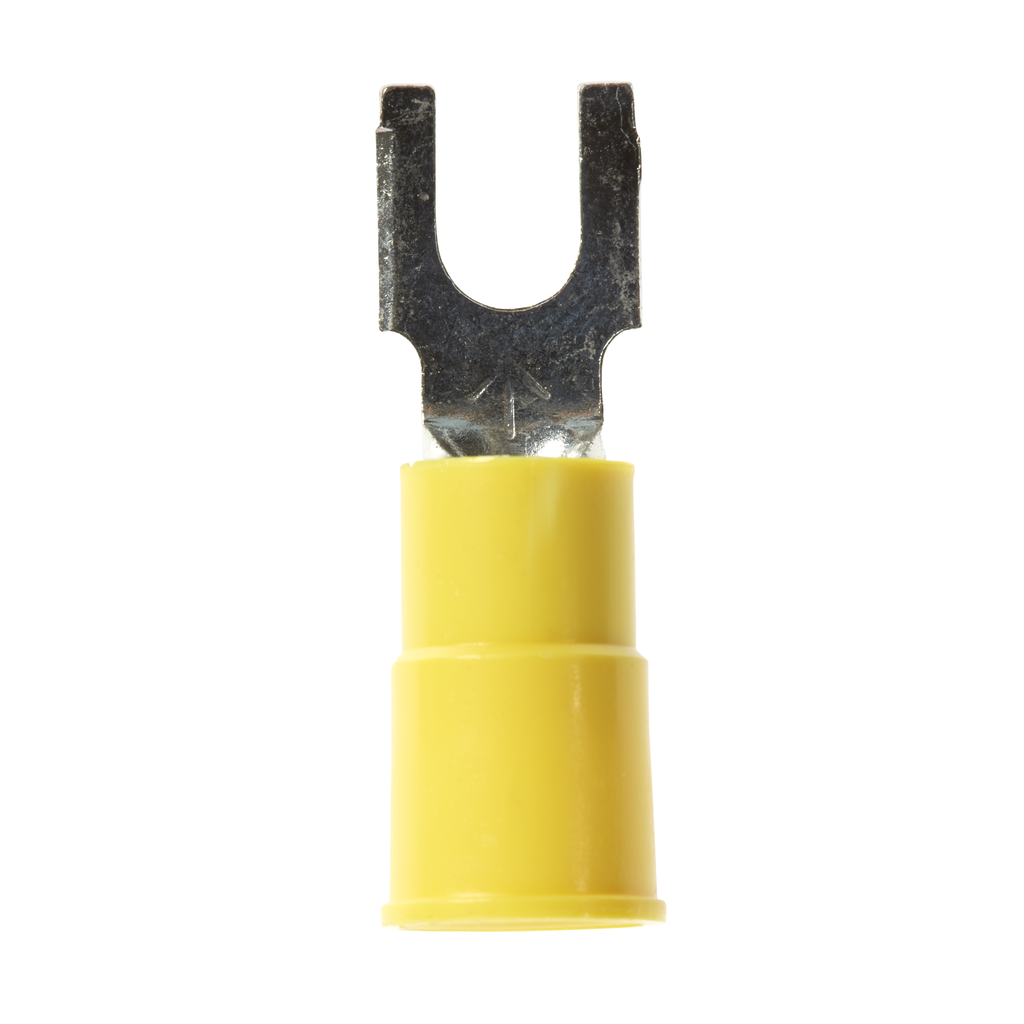

3M MV10-8FBX 50/Bottle Vinyl Insulated Block Fork
Product image thumbnail 0
Product image thumbnail 1
2,250 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV10-8FBX
Viking Electric Part # 44395

Features

  • Yellow vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Suitable for use in a terminal block
  • Stud size #8
  • Accommodates wire sizes 12 to 10 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.135 Inch
  • Barrel Style: Brazed
  • Color Family: Yellow
  • Conductor Size: 12 - 10 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.84 Inch
  • Fork Type: Block
  • Insulation Material: Vinyl
  • Material: ETP Copper
  • Maximum Conductor Size: 10 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.25 in
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Conductor Size: 12 AWG
  • Minimum Order Quantity: 50
  • Minimum Wire Gauge: 12 AWG
  • Overall Length (Imperial): 1.03 in
  • Overall Length (Metric): 26.162 mm
  • Overall Width (Imperial): 0.32 in
  • Overall Width (Metric): 8.128 mm
  • Product Color: Yellow
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #8
  • Terminal Style: Block
  • Terminal Type: Fork
  • UL File Number: E23438

Overview

UPC 05112858765
Long Description 3M Scotchlok Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128587652
Length 1.03 in
Width 0.32 in
Type Fork
Thickness 0.04 in
Barrel Type Brazed
Material PVC
Stud Size 8
Terminal Style Block
Terminal Type Fork
Conductor Size 12 To 10 AWG
Family Brand Name Scotchlok
Insulation Material Vinyl
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Color Yellow
Max Operating Temperature 221 degrees F
Overall Length 1.03 in
