Overview

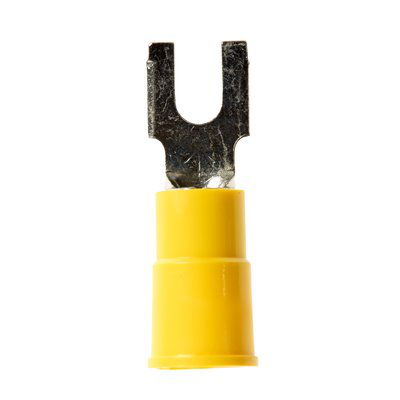

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Block Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a brazed-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
- Yellow vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Suitable for use in a terminal block
- Stud size #6
- Accommodates wire sizes 12 to 10 AWG
- Electrolytic copper construction offers good conductivity
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- 50/carton, 500/case
Specifications
- 3M ID: 80611464100
- Agency Approvals: UL and CSA
- Barrel Style: Brazed
- Brand: Scotchlok™
- Clearance (C): 0.29 Inch
- Color: Yellow
- Conductor Size: 12 - 10 AWG
- Conductor Sizes: 12 - 10 AWG
- CSA File Number: LR22190
- Dimension E: 0.84 Inch
- Insulation Material: Vinyl
- Length: 1.03 Inch
- Length (Metric): 26.162 mm
- Material: ETP Copper
- Maximum Insulation Outer Diameter: 0.250 Inch
- Maximum Operating Temperature (Celsius): 105 Degree Celsius
- Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
- Maximum Recommended Voltage Rating: 600 V
- Maximum Wire Gauge: 10 AWG
- Minimum Wire Gauge: 12 AWG
- Packaging: 50 per bottle
- RoHS 2011/65/EU Compliant: Yes
- RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
- Solution for: Wireless Network: Infrastructure Accessories
- Stud Size: #6
- Terminal Style: Block
- Terminal Type: Fork
- Thickness: 0.04 Inch
- Thickness (Metric): 1.01 mm
- Trademark: Scotchlok
- UL File Number: E23438
- Width: 0.32 Inch
- Width (Metric): 8.128 mm
