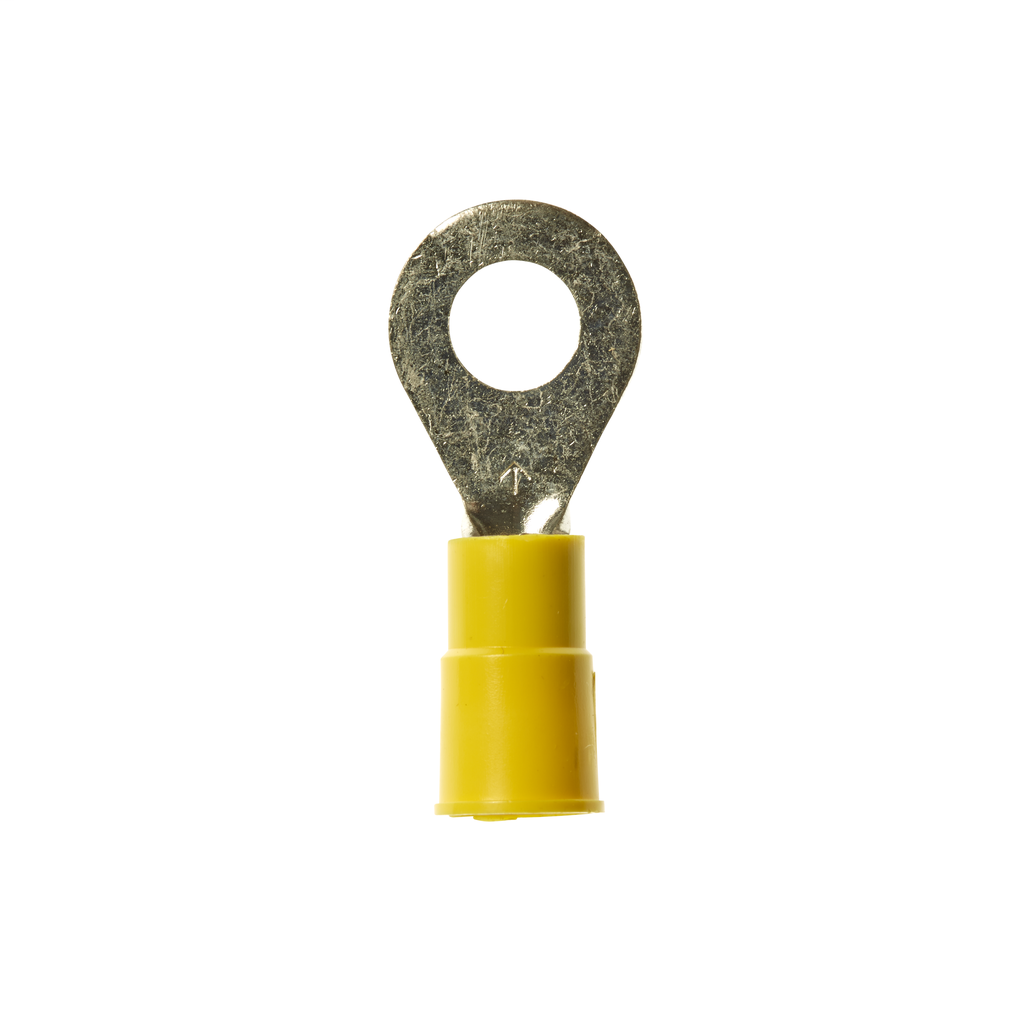

3M MV10-14R/SX 50/Bottle Vinyl Insulated Ring
Product image thumbnail 0
Product image thumbnail 1
1,500 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV10-14R/SX
Viking Electric Part # 44390

Features

  • Yellow vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size 1/4 in
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Specifications

  • Color Family: Yellow
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 10 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 12 AWG
  • Overall Length (Imperial): 1.26 in
  • Overall Length (Metric): 32.004 mm
  • Overall Width (Imperial): 0.53 in
  • Overall Width (Metric): 13.462 mm
  • Product Color: Yellow
  • Terminal Type: Ring

Overview

UPC 05112858759
Long Description 3M Scotchlok Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128587591
Length 1.26 in
Finish Tin Plated
Width 0.53 in
Color Yellow
Type Ring
Thickness 0.04 in
Barrel Type Brazed
Material PVC
Stud Size 1/4 in
Terminal Style Standard
Terminal Type Ring
Conductor Size 12 To 10 AWG
Barrel Diameter 0.135 in ID
Temperature Rating -40 to 105 C
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 12 - 10 AWG
Barrel Length 0.55 in
Sub Brand Scotchlok
Voltage 600 Volt
Max Operating Temperature 105 C
Overall Length 1.26 in
