3M MV10-10RX 50/Bottle Vinyl Insulated Ring
1,950 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV10-10RX
Viking Electric Part # 44389

Overview

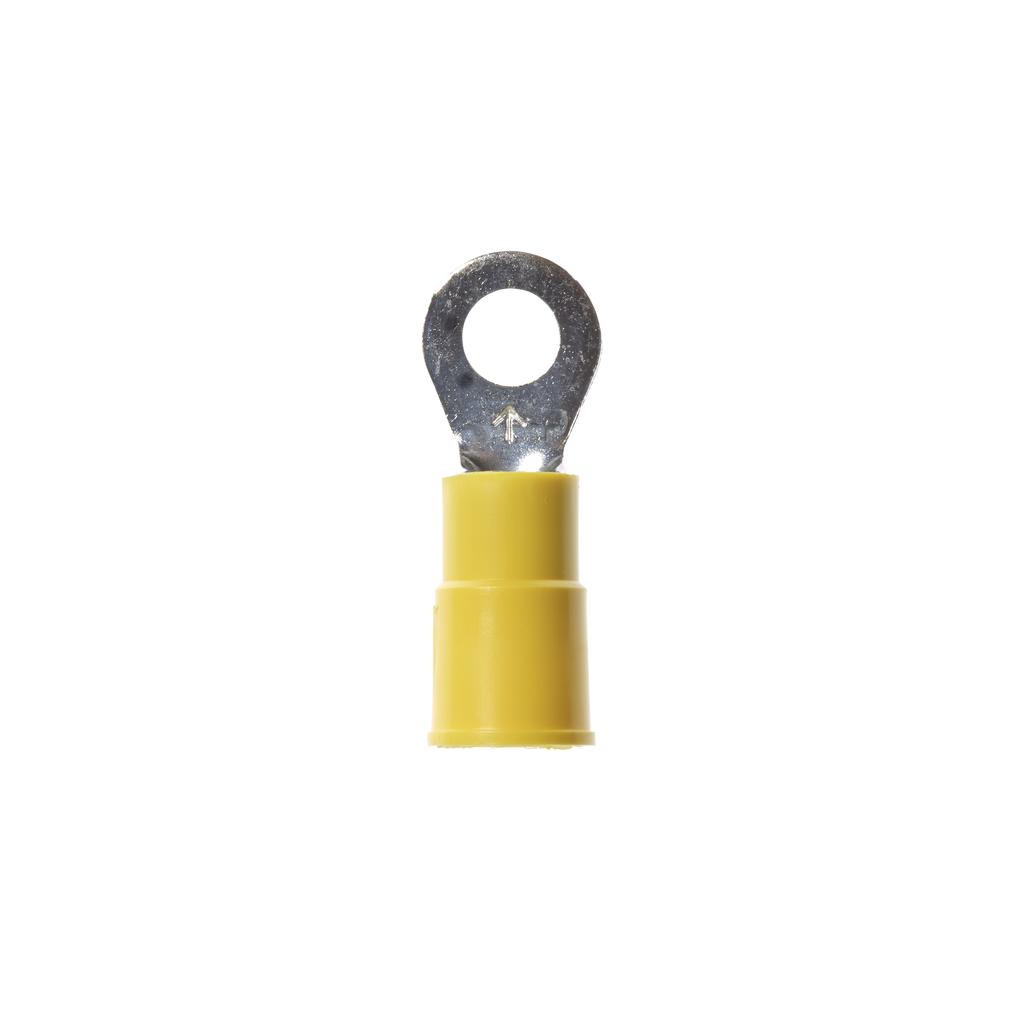

3M™ Scotchlok™ Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

  • Yellow vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size #10
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Specifications

  • 3M ID: 80611464043
  • Agency Approvals: UL and CSA
  • Barrel Style: Brazed
  • Brand: Scotchlok™
  • Clearance (C): 0.29 Inch
  • Color: Yellow
  • Conductor Size: 12 - 10 AWG
  • Conductor Sizes: 12 - 10 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.84 Inch
  • Insulation Material: Vinyl
  • Length: 1.03 Inch
  • Length (Metric): 26.16 mm
  • Material: Plastic
  • Maximum Insulation Outer Diameter: 0.250 Inch
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Wire Gauge: 12 AWG
  • Operating Temperature Range (Celsius): -40 °C to 105 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 221 °F
  • Packaging: 50 per bottle
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Solution for: Wireless Network: Infrastructure Accessories
  • Stud Size: #10
  • Terminal Style: Standard
  • Terminal Type: Ring
  • Thickness: 0.04 Inch
  • Thickness (Metric): 1.01 mm
  • Trademark: Scotchlok
  • Type: Standard
  • UL File Number: E23438
  • Width: 0.38 Inch
  • Width (Metric): 9.65 mm

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858758
Long Description 3M Scotchlok Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128587584
Length 1.03 in
Finish Tin Plated
Width 0.38 in
Color Yellow
Type Standard
Thickness 0.04 in
Barrel Type Brazed Seam
Material ETP Copper
Stud Size #10
Terminal Style Standard
Terminal Type Ring
Conductor Size 12-10 AWG
Barrel Diameter 0.135 in ID
Temperature Rating -40 to 105 C
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 12 - 10 AWG
Max Operating Temperature 221 degrees F
Barrel Length 0.55 in
Sub Brand Scotchlok
Voltage 600 Volt
