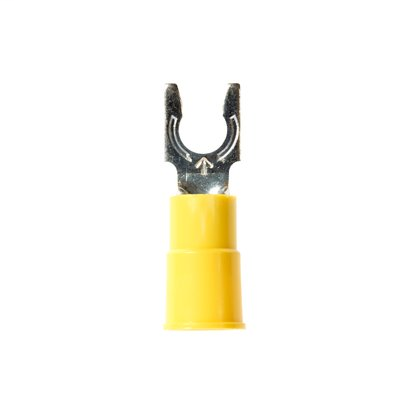

3M MV10-10FX 50/Bottle Vinyl Insulated Fork
Product image thumbnail 0
Product image thumbnail 1
600 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV10-10FX
Viking Electric Part # 44388

Features

  • Yellow vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Wider-tongue design for use on free-standing studs
  • Stud size #10
  • Accommodates wire sizes 12 to 10 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.135 Inch
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Style: Brazed
  • Color Family: Yellow
  • Conductor Size: 12 - 10 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.84 Inch
  • Fork Type: Standard
  • Insulation Material: Vinyl
  • Material: ETP Copper
  • Maximum Conductor Size: 10 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.25 in
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Conductor Size: 12 AWG
  • Minimum Order Quantity: 50
  • Minimum Wire Gauge: 12 AWG
  • Overall Length (Imperial): 1.03 in
  • Overall Length (Metric): 26.16 mm
  • Overall Width (Imperial): 0.38 in
  • Overall Width (Metric): 9.6 mm
  • Product Color: Yellow
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #10
  • Terminal Style: Standard
  • Terminal Type: Fork
  • UL File Number: E70512

Overview

UPC 05112858763
Long Description 3M Scotchlok Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128587638
Length 1.03 in
Finish Tin Plated
Width 0.38 in
Color Yellow
Type Fork
Thickness 0.04 in
Barrel Type Brazed
Material PVC
Stud Size 10
Terminal Style Standard
Terminal Type Fork
Conductor Size 12 To 10 AWG
Barrel Diameter 0.135 in ID
Temperature Rating -40 to 105 C
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 12 - 10 AWG
Barrel Length 0.25 in
Sub Brand Scotchlok
Voltage 600 Volt
Max Operating Temperature 221 degrees F
Overall Length 1.03 in
