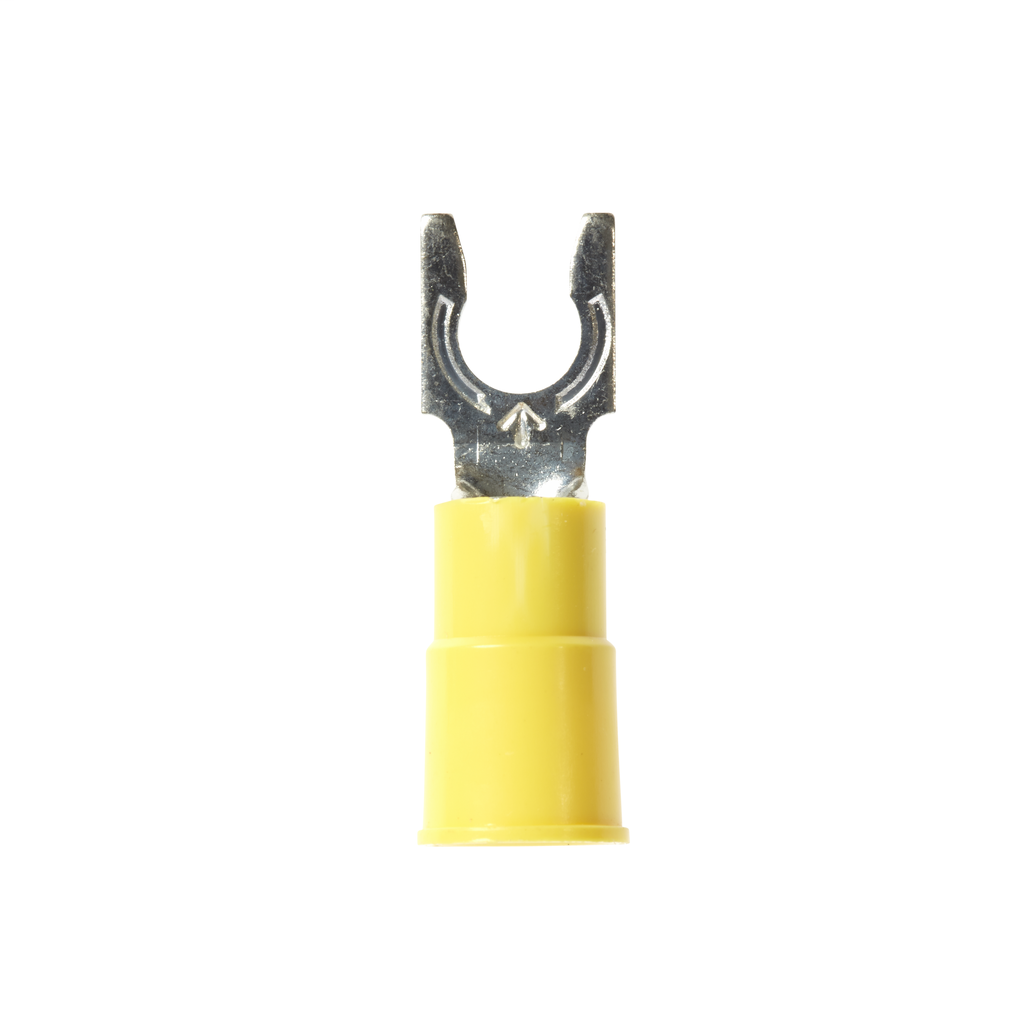

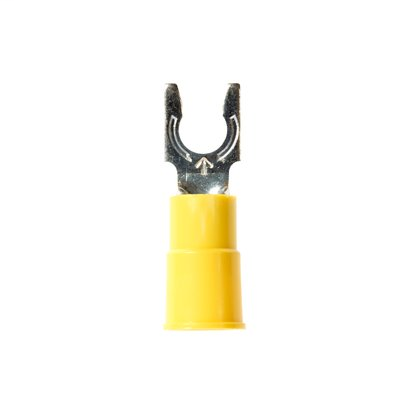

3M MV10-10FLX 50/Bottle Vinyl Insulated Locking Fork
350 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV10-10FLX
Viking Electric Part # 44387

Specifications

  • Terminal Style: Locking
  • Stud Size: 10
  • RoHS 2011/65/EU Compliant: Yes
  • Thickness: 0.04 Inch
  • CSA File Number: LR22190
  • Maximum Lock Width: 0.36 Inch
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Length: 1.03 Inch
  • Barrel Style: Brazed
  • Packaging: 50 per bottle
  • UL File Number: E23438
  • Insulation Material: Vinyl
  • Terminal Type: Fork
  • Conductor Sizes: 12 - 10 AWG
  • Maximum Insulation Outer Diameter: 0.250 Inch
  • Agency Approvals: UL and CSA
  • Dimension E: 0.83 Inch
  • Clearance (C): 0.28 Inch
  • Width: 0.32 Inch
  • Trademark: Scotchlok
  • Brand: Scotchlok

Documents

Categories

Overview

UPC 05112858830
Long Description Locking Fork Vinyl Insulated, 50/bottle, MV10-10FLX
GTiN 00051128588307
Type Fork
Material PVC
Family Brand Name 3M
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Length 1.03 in
Width 0.32 in
Thickness 0.04 in
Barrel Type Brazed
Stud Size 10
Terminal Style Locking
Terminal Type Fork
Conductor Size 12 To 10 AWG
Insulation Material Vinyl
