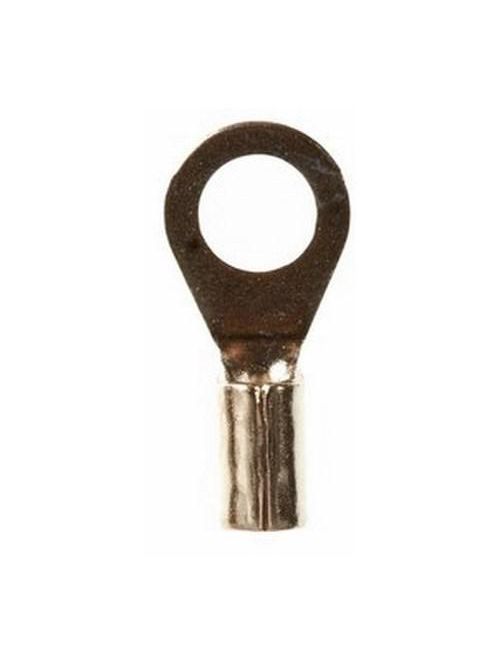

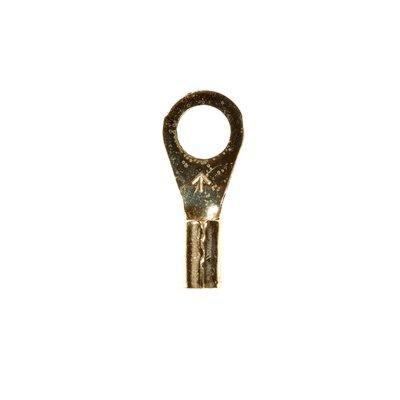

3M MU14-10RHTK High Temperature Butted Seam Ring Tongue Terminal
Product image thumbnail 0
Product image thumbnail 1
Usually available within 6 to 8 Days
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MU14-10RHTK
Viking Electric Part # 44375

Features

  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • For use in ovens, motors, light fixtures and other applications
  • Stud size #10
  • Accommodates wire sizes 16 to 14 AWG
  • Made of durable steel for high-temperature applications and has nickel plating for corrosion resistance
  • Withstands a maximum temperature of 900 degrees F (482 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • 1000/case

Specifications

  • Connection Width (Imperial): 0.19 in
  • Connection Width (Metric): 4.826 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 14 AWG
  • Maximum Operating Temperature (Celsius): 482 Degree Celsius
  • Minimum Conductor Size: 16 AWG
  • Overall Length (Imperial): 0.7 in
  • Overall Width (Imperial): 0.33 in
  • Product Key: KBBT BULK BARE BUTTED SEAM TERMINALS FKD
  • Terminal Type: Ring

Overview

UPC 05400701759
Long Description 3M Scotchlok High-Temperature Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Steel construction offers durability and a nickel-plated finish resists corrosion.
GTiN 00054007017592
Type Ring
Stud Size 10
Family Brand Name Scotchlok
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.7 in
Width 0.33 in
Thickness 0.03 in
Barrel Type Butted
Material Steel
Terminal Style High Temp
Terminal Type Ring
Conductor Size 16 To 14 AWG
Insulation Material Non-Insulated
Barrel Length 0.25 in
Max Operating Temperature 482 C
Overall Length 0.7 in
