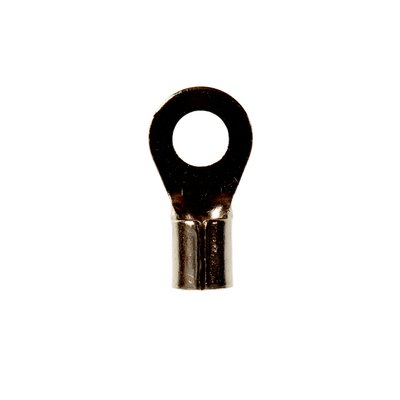

3M MU10-10RHTX 50/Bottle Non-Insulated High Temperature Ring
Product image thumbnail 0
Product image thumbnail 1
Usually available within 6 to 8 Days
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MU10-10RHTX
Viking Electric Part # 44371

Features

  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • For use in ovens, motors, light fixtures and other applications
  • Stud size #10
  • Accommodates wire sizes 12 to 10 AWG
  • Made of durable steel for high-temperature applications and has nickel plating for corrosion resistance
  • Withstands a maximum temperature of 900 degrees F (482 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Specifications

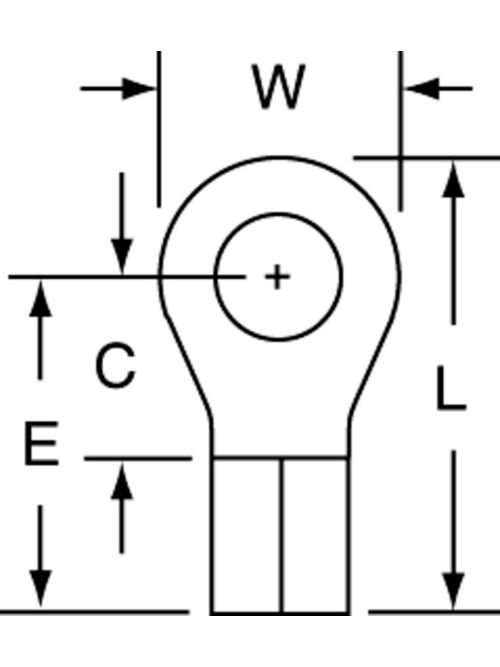

  • Connection Width (Imperial): 0.19 in
  • Connection Width (Metric): 4.826 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 10 AWG
  • Maximum Operating Temperature (Celsius): 482 Degree Celsius
  • Minimum Conductor Size: 12 AWG
  • Overall Length (Imperial): 0.73 in
  • Overall Length (Metric): 18.54 mm
  • Overall Width (Imperial): 0.38 in
  • Overall Width (Metric): 9.65 mm
  • Product Color: Metal
  • Terminal Type: Ring

Categories

Overview

UPC 05112858772
Long Description 3M Scotchlok High-Temperature Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Steel construction offers durability and a nickel-plated finish resists corrosion.
GTiN 00051128587720
Length 0.73 in
Width 0.38 in
Type Ring
Thickness 0.04 in
Barrel Type Butted
Material Steel
Stud Size 10
Terminal Style High Temp
Terminal Type Ring
Conductor Size 12 To 10 AWG
Family Brand Name Scotchlok
Insulation Material Non-Insulated
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Color Metal
Max Operating Temperature 482 C
Overall Length 0.73 in
