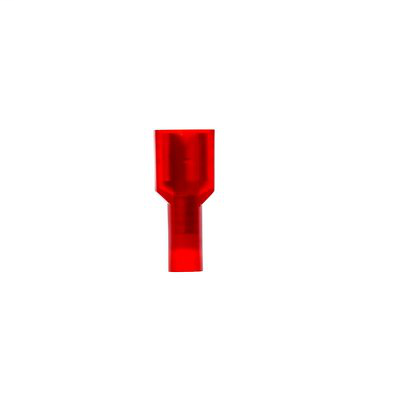

3M MNU18-250DFIX 100/Bottle Nylon Insulated Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
Usually available within 6 to 8 Days
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNU18-250DFIX
Viking Electric Part # 43915

Features

  • Red nylon-insulated, butted-seam barrel offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • 3M™ Scotchlok™ Color-Coded Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
  • 3M™ Scotchlok™ Color-Coded Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. The terminal has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve which serves to guide the wire into position. The nylon-sleeve is abrasion-resistant, fully insulated and flared to allow a positive grip. Its stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide male tab
  • Accommodates wire sizes 22 to 18 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611464225
  • Agency Approvals: UL and CSA
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Style: Butted
  • Brand: Scotchlok™
  • Color Family: Red
  • Conductor Size: 22 - 18 AWG
  • Connection Type: Wire
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Connector Style: Insulation Displacement
  • Disconnect Type: Female
  • Fastener Orientation: Female
  • Flame Retardant: No
  • Insulation Material: Nylon
  • Manufacturing Origin: USA
  • Material: ETP Copper
  • Mates with Female Width: 0.250 Inch
  • Mates with Male Tab Width (W'): 0.25 Inch
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Minimum Order Quantity: 100
  • Minimum Wire Gauge: 22 AWG
  • National Stock Number: 5940013049355
  • Overall Diameter (Imperial): 0.23 in
  • Overall Length (Imperial): 0.87 in
  • Overall Length (Metric): 22.09 mm
  • Overall Width (Imperial): 0.37 in
  • Overall Width (Metric): 9.4 mm
  • Pad Width: 0.25 in
  • Product Color: Red
  • Tab Width: 0.250
  • Terminal Style: Fully Insulated
  • Terminal Type: Standard

Overview

UPC 05112858776
Long Description Corrosion resistance to water, salt, steam and other related contaminantsDents and rolled edges of this female disconnect terminal offer excellent holding forceFuse not includedNo wire stripping neededWhen crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and saltWithstands a temperature range of -40 to 221 F (-40 to 105 C)Made of durable brass for good conductivity and has corrosion-resistant tin plating
GTiN 00051128587768
Length 0.87 in
Width 0.37 in
Color Red
Type Disconnect
Diameter 0.23 in
Thickness 0.032 in
Barrel Type Butted
Material Nylon
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 22 To 18 AWG
Tab Size 6.3 x 0.8 mm
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Max Operating Temperature 221 degrees F
Overall Length 0.87 in
