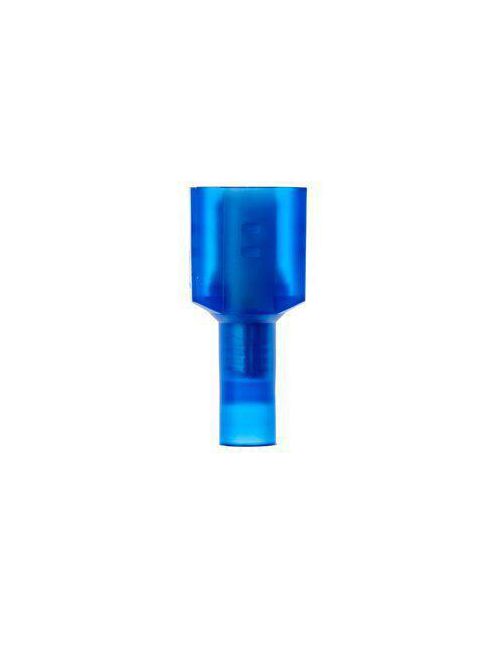

3M MNU14-250DMIX 50/Bottle Nylon Insulated Male Disconnect
Usually available within 6 to 8 Days
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNU14-250DMIX
Viking Electric Part # 43912

Features

  • Blue nylon-insulated, butted-seam barrel offers easy insertion of wires
  • This male disconnect terminal offers excellent holding force
  • 3M™ Scotchlok™ Color-Coded Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • 3M™ Scotchlok™ Color-Coded Male Disconnect Terminal attaches to the mating part with a tongue that slips over the female tab. The butted-seam barrel of this terminal provides electrical contact after crimping. The nylon-sleeve is abrasion-resistant, flared and offers a positive grip. Its stepped design ensures mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide female tab
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611464258
  • Agency Approvals: UL and CSA
  • Barrel Style: Butted
  • Brand: Scotchlok™
  • Color Family: Blue
  • Conductor Size: 16 - 14 AWG
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Disconnect Type: Male
  • Fastener Orientation: Male
  • Insulation Material: Nylon
  • Male Tab Width (W'): 0.250 Inch
  • Manufacturing Origin: USA
  • Material: Plastic
  • Maximum Conductor Size: 14 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.17 in
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 14 AWG
  • Minimum Conductor Size: 16 AWG
  • Minimum Order Quantity: 50
  • Minimum Wire Gauge: 16 AWG
  • Operating Temperature Range (Celsius): -40 °C to 105 °C
  • Overall Diameter (Imperial): 0.3 in
  • Overall Diameter (Metric): 9.9 mm || 9.9 mm
  • Overall Length (Imperial): 0.95 in
  • Overall Length (Metric): 24.13 mm
  • Overall Width (Imperial): 0.44 in
  • Overall Width (Metric): 11.17 mm
  • Pad Width: 0.25 in
  • Product Color: Blue
  • Tab Width: 0.187
  • Terminal Style: Fully Insulated
  • Terminal Type: Standard
  • Voltage Application: Low Voltage

Overview

UPC 05112858779
Long Description The disconnects are attached to mating part by tongue of female part slipping over male tab. The use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.
GTiN 00051128587799
Length 0.95 in
Finish Tin Plated
Width 0.44 in
Color Blue
Type Disconnect
Diameter 0.3 in
Thickness 0.032 in
Barrel Type Butted
Material Plastic, Copper
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 16-14 AWG
Applications For Wire Termination
Tab Size 0.032 x 1/4 in
Temperature Rating -40 to 105 C
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 16 - 14 AWG
Max Operating Temperature 221 degrees F
Sub Brand Scotchlok
Voltage null
Overall Length 0.95 in
