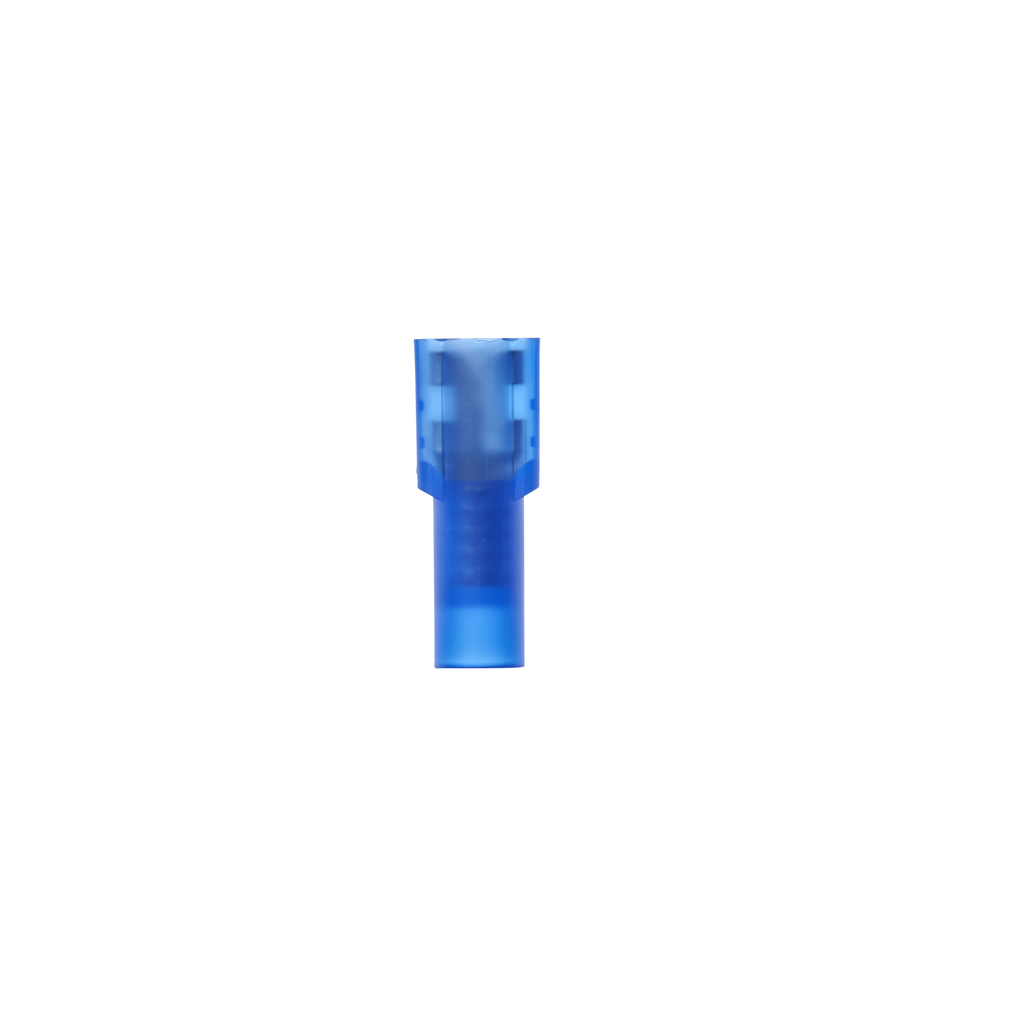

3M MNU14-187DFIX 100/Bottle Nylon Insulated Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
100 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNU14-187DFIX
Viking Electric Part # 43910

Features

  • Blue nylon-insulated, butted-seam barrel offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.187-in wide male tab
  • Accommodates wire sizes 16 to 14 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.085 Inch
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Style: Butted
  • Color Family: Blue
  • Conductor Size: 16 - 14 AWG
  • Connection Type: Wire
  • Connection Width (Imperial): 0.187 in
  • Connection Width (Metric): 4.75 mm
  • Connector / Connector Tool: Connector
  • Connector Style: Insulation Displacement
  • CSA File Number: LR22190
  • Diameter (D): 0.23 Inch
  • Disconnect Type: Female
  • Fastener Orientation: Female
  • Flame Retardant: No
  • Grease Filling Against Corrosion: No
  • Insulation Color: Blue
  • Insulation Material: Nylon
  • Interrupt Free Shifting: No
  • Male Tab Width (W'): 0.187 Inch
  • Material: ETP Copper
  • Mates with Female Width: 0.187 Inch
  • Mates with Male Tab Width (W'): 0.187 Inch
  • Maximum Conductor Size: 14 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.145 in
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 14 AWG
  • Minimum Conductor Size: 16 AWG
  • Minimum Order Quantity: 100
  • Minimum Wire Gauge: 16 AWG
  • Overall Diameter (Imperial): 0.23 in
  • Overall Length (Imperial): 0.81 in
  • Overall Length (Metric): 20.57 mm
  • Overall Width (Imperial): 0.3 in
  • Overall Width (Metric): 9.4 mm
  • Product Color: Blue
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tab Width: 0.187
  • Terminal Style: Fully Insulated
  • Terminal Type: Standard
  • UL File Number: E70512

Overview

UPC 05112858787
Long Description 3M Scotchlok Color-Coded Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128587874
Length 0.81 in
Width 0.3 in
Color Blue
Type Disconnect
Diameter 0.23 in
Thickness 0.02 in
Barrel Type Butted
Material ETP Copper
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 16-14 AWG
Connection Type Wire
Tab Size 3/16 in
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 16 - 14 AWG
Max Operating Temperature 221 degrees F
Barrel Length 0.25 in
Sub Brand Scotchlok
Overall Length 0.81 in
