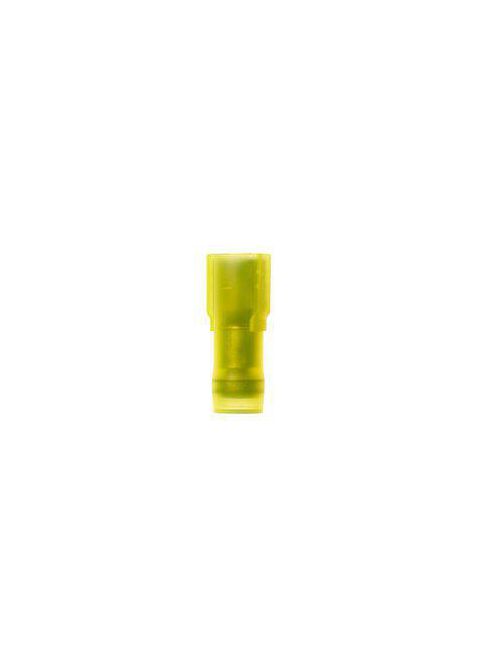

3M MNGI10-250DFIX 50/Bottle Nylon Insulated Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
Usually available within 6 to 8 Days
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNGI10-250DFIX
Viking Electric Part # 43900

Features

  • Yellow nylon-insulated, butted seam with an interlocking barrel and funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide male tab
  • Accommodates wire sizes 12 to 10 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

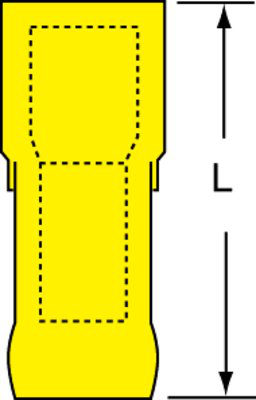

Specifications

  • Barrel Inside Diameter: 0.165 Inch
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Style: Interlocking Barrel
  • Color Family: Yellow
  • Conductor Size: 12 - 10 AWG
  • Connection Type: Wire
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Connector / Connector Tool: Connector
  • Connector Style: Insulation Displacement
  • CSA File Number: LR22190
  • Diameter (D): 0.23 Inch
  • Disconnect Type: Female
  • Fastener Orientation: Female
  • Flame Retardant: No
  • Grease Filling Against Corrosion: No
  • Insulation Color: Yellow
  • Insulation Material: Nylon with Insulation Grip
  • Interrupt Free Shifting: No
  • Male Tab Width (W'): 0.250 Inch
  • Material: ETP Copper
  • Mates with Male Tab Width (W'): 0.25 Inch
  • Maximum Conductor Size: 10 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.25 in
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Conductor Size: 12 AWG
  • Minimum Order Quantity: 50
  • Minimum Wire Gauge: 12 AWG
  • Overall Diameter (Imperial): 0.23 in
  • Overall Length (Imperial): 0.94 in
  • Overall Length (Metric): 23.87 mm
  • Overall Width (Imperial): 0.37 in
  • Product Color: Yellow
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tab Width: 0.250
  • Terminal Style: Fully Insulated
  • Terminal Type: Standard
  • UL File Number: E70512

Overview

UPC 05112858920
Long Description 3M Scotchlok Color-Coded Female Disconnect Terminal has dents and rolled edges for quick and easy disconnect. The terminal has a fully insulated, nylon, butted seam with an interlocking barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128589205
Length 0.94 in
Finish Tin Plated
Width 0.37 in
Color Yellow
Type Disconnect
Diameter 0.23 in
Thickness 0.032 in
Barrel Type Butted Seam with Interlocking
Material ETP Copper
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 12-10 AWG
Applications For Quick and Easy Disconnect of Wires
Connection Type Wire
Tab Size 1/4 in W x 0.032 in T
Temperature Rating -40 to 105 C
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 12 - 10 AWG
Max Operating Temperature 221 degrees F
Barrel Length 0.25 in
Sub Brand Scotchlok
Voltage 600 Volt
Overall Length 0.94 in
