3M MNG18-10FBX 100/Bottle Nylon Insulated Block Fork
Usually available within 6 to 8 Days
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG18-10FBX
Viking Electric Part # 43893

Overview

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Block Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

  • Red nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Suitable for use in a terminal block
  • Stud size #10
  • Accommodates wire sizes 22 to 18 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • 3M ID: 80611457997
  • Agency Approvals: UL and CSA
  • Barrel Style: Butted
  • Brand: Scotchlok™

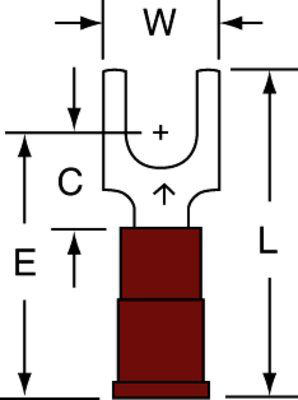

  • Clearance (C): 0.25 Inch
  • Color: Red
  • Conductor Size: 22 - 18 AWG
  • Conductor Sizes: 22 - 18 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.69 Inch
  • Insulation Material: Nylon with Insulation Grip
  • Length: 0.84 Inch
  • Length (Metric): 21.336 mm
  • Material: ETP Copper
  • Maximum Insulation Outer Diameter: 0.145 Inch
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 18 AWG
  • Minimum Wire Gauge: 18 AWG
  • Packaging: 100 per bottle
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #10
  • Terminal Style: Block
  • Terminal Type: Fork
  • Thickness: 0.03 Inch
  • Thickness (Metric): 0.76 mm
  • Trademark: Scotchlok
  • UL File Number: E23438
  • Width: 0.3 Inch
  • Width (Metric): 7.62 mm

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858654
Long Description 3M Scotchlok Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128586549
Length 0.84 in
Finish Tin Plated
Width 0.3 in
Color Red
Type Short Sleeve, Block
Thickness 0.03 in
Barrel Type Butted
Material Copper
Stud Size #10
Terminal Style Block
Terminal Type Fork
Conductor Size 22-18 AWG
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 22 - 18 AWG
Max Operating Temperature 221 degrees F
Sub Brand Scotchlok
