3M MNG14-187DFX 100/Bottle Nylon Insulated Female Disconnect

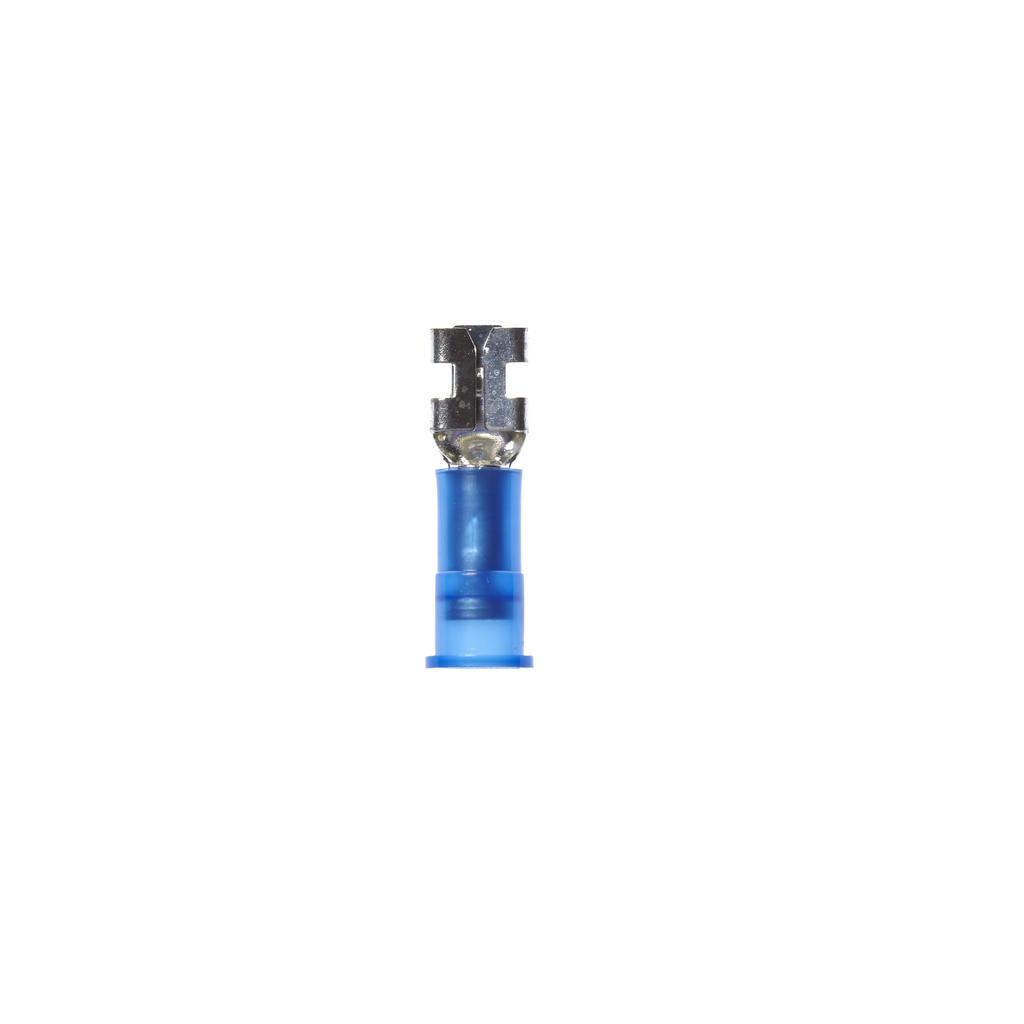

Product image thumbnail 0
Product image thumbnail 1
500 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG14-187DFX
Viking Electric Part # 43886

Features

  • Blue nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.187-in wide male tab
  • Accommodates wire sizes 16 to 14 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.085 Inch
  • Barrel Style: Butted
  • Conductor Size: 16 - 14 AWG
  • Connection Width (Imperial): 0.187 in
  • Connection Width (Metric): 4.75 mm
  • CSA File Number: LR22190
  • Disconnect Type: Female
  • Fastener Orientation: Female
  • Insulation Material: Nylon with Insulation Grip
  • Mates with Female Width: 0.187 Inch

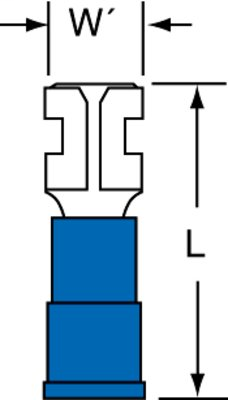

  • Mates with Male Tab Width (W'): 0.187 Inch
  • Maximum Conductor Size: 14 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.145 in
  • Minimum Conductor Size: 16 AWG
  • Minimum Order Quantity: 100
  • Overall Length (Imperial): 0.77 in
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tab Width: 0.250
  • Terminal Style: Standard
  • Terminal Type: Standard
  • UL File Number: E70512

Overview

UPC 05112858672
Long Description 3M Scotchlok Color-Coded Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128586723
Length 0.77 in
Type Disconnect
Thickness 0.02 in
Barrel Type Butted
Material Nylon
Terminal Style Standard
Terminal Type Disconnect
Conductor Size 16 To 14 AWG
Family Brand Name Scotchlok
Insulation Material Nylon With Insulation Grip
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Overall Length 0.77 in
