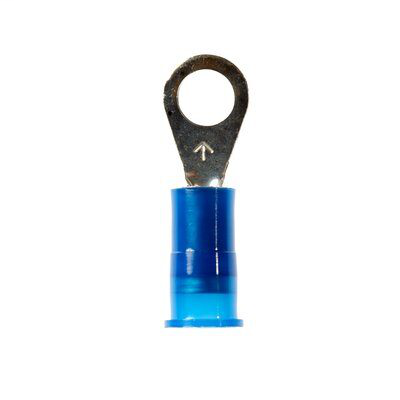

3M MNG14-10R/LX 100/Bottle Nylon Insulated Ring
100 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG14-10R/LX
Viking Electric Part # 43885

Features

  • Blue nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 3M™ Scotchlok™ Color-Coded Large Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size #10
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611458078
  • Agency Approvals: UL and CSA
  • Barrel Style: Butted
  • Brand: Scotchlok™
  • Clearance (C): 0.33 Inch
  • Color Family: Blue
  • Conductor Size: 16 - 14 AWG
  • Dimension E: 0.79 Inch
  • Insulation Material: Nylon
  • Manufacturing Origin: USA
  • Material: Plastic
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Voltage Rating: 600 to 1000 V
  • Maximum Wire Gauge: 14 AWG
  • Minimum Order Quantity: 100
  • Minimum Stud Diameter (Imperial): 0.19 in
  • Minimum Stud Diameter (Metric): 5 mm
  • Minimum Wire Gauge: 16 AWG
  • National Stock Number: 5940001434780
  • Operating Temperature Range (Celsius): -40 °C to 105 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 221 °F
  • Overall Length (Imperial): 0.94 in
  • Overall Length (Metric): 23.87 mm
  • Overall Width (Imperial): 0.31 in
  • Overall Width (Metric): 7.87 mm
  • Product Color: Blue
  • Ring Type: Standard
  • Stud Size: #10
  • Terminal Style: Standard
  • Terminal Type: Ring
  • Type: Standard

Overview

UPC 05112858662
Long Description Ring Nylon Insulated, 100/bottle, MNG14-10R/LX
GTiN 00051128586624
Length 0.94 in
Finish Tin Plated
Width 0.31 in
Color Blue
Type Standard
Thickness 0.03 in
Barrel Type Butted
Material Copper
Stud Size #10
Terminal Style Standard
Terminal Type Ring
Conductor Size 16-14 AWG
Barrel Diameter 0.09 in ID
Temperature Rating -40 to 105 C
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 16 - 14 AWG
Barrel Length 0.46 in
Sub Brand Scotchlok
Voltage null
Max Operating Temperature 221 degrees F
Overall Length 0.94 in
