3M MNG10-10RX 50/Bottle Nylon Insulated Ring
Usually available within 6 to 8 Days
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG10-10RX
Viking Electric Part # 43878

Overview

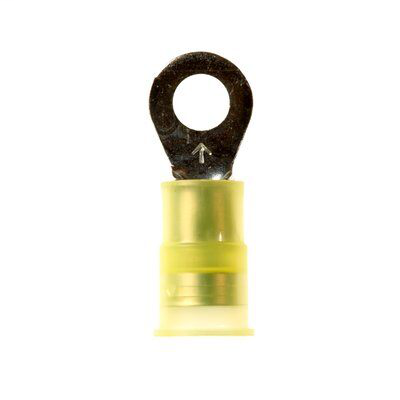

3M™ Scotchlok™ Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

  • Yellow nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size #10
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Specifications

  • 3M ID: 80611458318
  • Agency Approvals: UL and CSA
  • Barrel Style: Butted
  • Brand: Scotchlok™
  • Clearance (C): 0.29 Inch
  • Color: Yellow
  • Conductor Size: 12 - 10 AWG
  • Conductor Sizes: 12 - 10 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.84 Inch
  • Insulation Material: Nylon with Insulation Grip
  • Length: 1.03 Inch
  • Length (Metric): 26.16 mm
  • Material: Plastic
  • Maximum Insulation Outer Diameter: 0.250 Inch
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Wire Gauge: 12 AWG
  • National Stock Number: 5940001434794, 5940016068193
  • Operating Temperature Range (Celsius): -40 °C to 105 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 221 °F
  • Packaging: 50 per bottle
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #10
  • Terminal Style: Standard
  • Terminal Type: Ring
  • Thickness: 0.04 Inch
  • Thickness (Metric): 1.01 mm
  • Trademark: Scotchlok
  • Type: Standard
  • UL File Number: E23438
  • Width: 0.38 Inch
  • Width (Metric): 9.65 mm

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858686
Long Description The safest and most reliable style of tongue -- it cannot be removed unless mounting screw is removedFunnel-designed, polyvinyl chloride sleeve offers easy insertion of wiresFlared portion of the nylon sleeve offers easy insertion of wiresStandard-style ring tongue fits around the studStud size #10Accommodates wire sizes 12 to 10 AWGStandard-style ring tongue fits around the studUL Listed, CSA Certified and RoHS 2011/65/EU Compliant600V-rated for building wire and 1000V for signs, fixtures or luminaires
GTiN 00051128586860
Length 1.03 in
Width 0.38 in
Color Yellow
Type Ring
Thickness 0.04 in
Barrel Type Butted
Material Plastic
Terminal Style Standard
Terminal Type Ring
Conductor Size 10 AWG
Family Brand Name 3M
Insulation Material Insulation Grip,Nylon
Terminal Size 12 - 10 AWG
Max Operating Temperature 221 degrees F
Sub Brand Scotchlok
