3M MN8-14R/SX 10/Bottle Nylon Insulated Ring
100 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 10 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MN8-14R/SX
Viking Electric Part # 43874

Overview

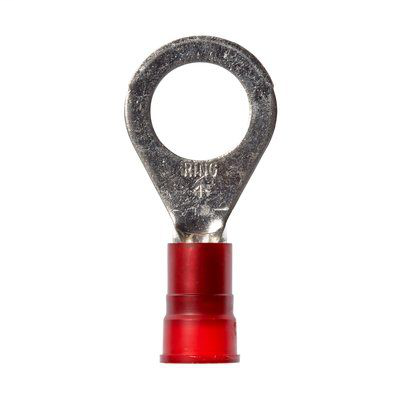

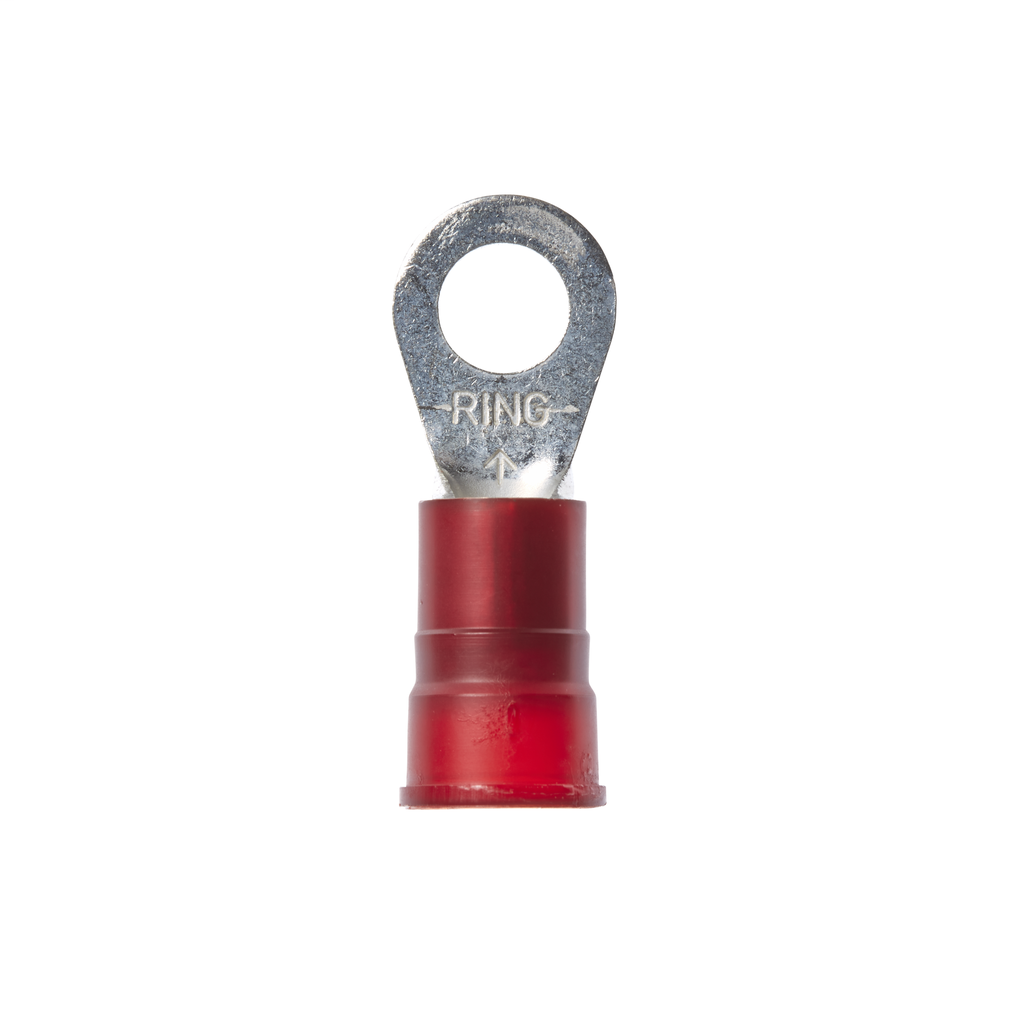

3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

  • Red nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Flared portion of the nylon sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size 1/4 in
  • Accommodates wire size 8 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 10/carton, 100/case

Specifications

  • 3M ID: 80611457807
  • Agency Approvals: UL and CSA
  • Barrel Style: Brazed
  • Brand: Scotchlok
  • Clearance (C): 0.40 Inch
  • Color: Red
  • Conductor Size: 8 AWG
  • Conductor Sizes: 8 AWG
  • CSA File Number: LR22190
  • Dimension E: 1.03 Inch
  • Insulation Material: Nylon
  • Length: 1.26 Inch
  • Length (Metric): 32.004 mm
  • Material: ETP Copper
  • Maximum Insulation Outer Diameter: 0.340 Inch
  • Packaging: 10 per bottle
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: 1/4 Inch
  • Terminal Style: Standard
  • Terminal Type: Ring
  • Thickness: 0.05 Inch
  • Thickness (Metric): 1.27 mm
  • Trademark: Scotchlok
  • UL File Number: E23438
  • Width: 0.47 Inch
  • Width (Metric): 11.938 mm

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858635
Long Description Effective and reliable performancePositive and easy wire insertionBurr-free, annealed and bright-tin plated ETP copperMaximum Operating Temperature 221F (105C)
GTiN 00051128586358
Length 1.26 in
Finish Tin Plated
Width 0.47 in
Color Red
Type Short Sleeve, Standard
Thickness 0.05 in
Barrel Type Brazed
Material Copper
Stud Size 1/4 in
Terminal Style Standard
Terminal Type Ring
Conductor Size 8 AWG
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 8 AWG
Sub Brand Scotchlok
