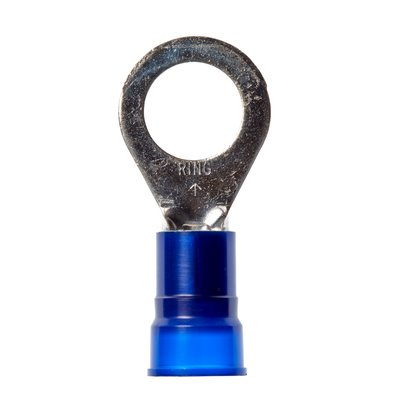

3M MN6-14R/SX 10/Bottle Nylon Insulated Ring
80 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 10 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MN6-14R/SX
Viking Electric Part # 43872

Specifications

  • Thickness: 0.05 Inch
  • Conductor Sizes: 6 AWG
  • RoHS 2011/65/EU Compliant: Yes
  • Terminal Style: Standard
  • Terminal Type: Ring

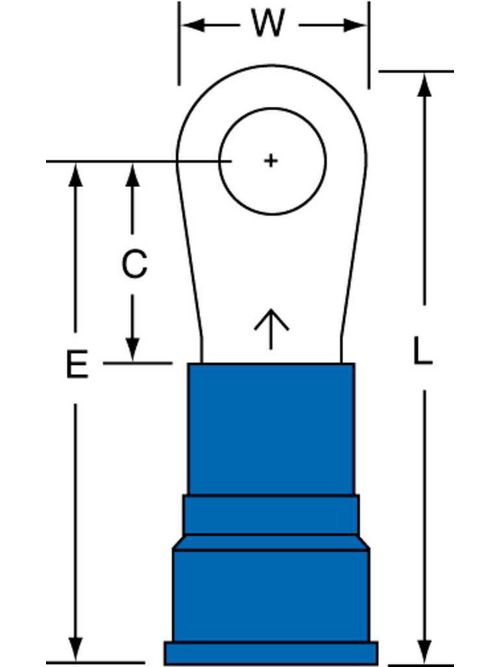

  • Clearance (C): 0.52 Inch
  • Dimension E: 1.27 Inch
  • Maximum Insulation Outer Diameter: 0.440 Inch
  • Agency Approvals: UL and CSA
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Brand: Scotchlok
  • UL File Number: E23438
  • Barrel Style: Brazed
  • Length: 1.5 Inch
  • Trademark: Scotchlok
  • Stud Size: 1/4 Inch
  • Width: 0.47 Inch
  • CSA File Number: LR22190
  • Packaging: 10 per bottle
  • Insulation Material: Nylon

Documents

Categories

Overview

UPC 05112858637
Long Description Ring Nylon Insulated, 10/bottle, MN6-14R/SX
GTiN 00051128586372
Length 1.5 in
Width 0.47 in
Type Ring
Thickness 0.05 in
Barrel Type Brazed
Material Nylon
Stud Size 1/4 in
Terminal Style Standard
Terminal Type Ring
Conductor Size 6 AWG
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 6 AWG
Sub Brand Scotchlok
