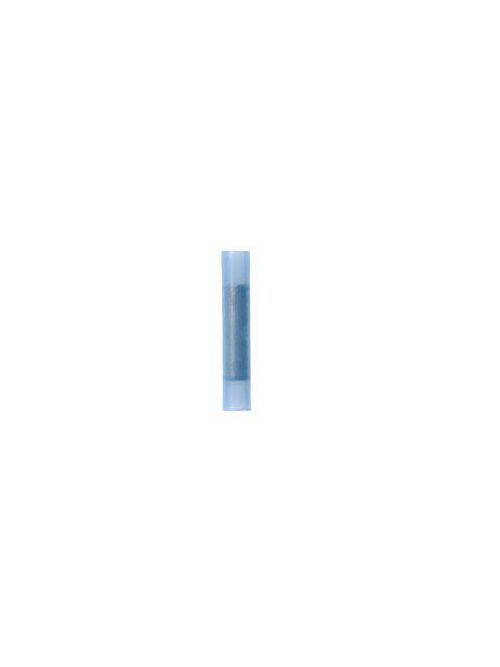

3M MN14BCX 100/Bottle Seamless Nylon Insulated Butt Connector
400 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MN14BCX
Viking Electric Part # 43870

Features

  • Blue nylon-insulated, seamless barrel ensures a secure fit and offers reliable performance
  • Offers electrical connection to a pre-stripped end of a stranded wire
  • 3M™ Scotchlok™ Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a nylon-insulated, seamless barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). The electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.
  • Built-in wire stop for correct positioning
  • 3M™ Scotchlok™ Butt Connector is color-coded for quick and easy identification of the wire size required. The connector has a nylon-insulated, seamless barrel and provides electrical connection to a pre-stripped end of a stranded wire. It has chamfered barrel ends that enable fast, simple wire insertion and allows for correct positioning with built-in wire stop. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611458250
  • Manufacturing Origin: USA
  • Brand: Scotchlok™
  • Color Family: Blue
  • Connector Type: Butt
  • Insulation Material: Nylon
  • Maximum Conductor Size: 14 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 16 AWG
  • Overall Length (Imperial): 1.02 in
  • Overall Length (Metric): 25.9 mm
  • Product Color: Blue

Overview

UPC 05112858680
Long Description Butt Connector Seamless Nylon Insulated, 100/bottle, MN14BCX
GTiN 00051128586808
Length 1.02 in
Finish Tin Plated
Color Blue
Type Standard, Insulated, Seamless
Thickness 0.031 in
Barrel Type Seamless
Material Electrolytic Copper, Nylon
Terminal Style Standard
Terminal Type Butt
Conductor Size 16-14 AWG
Temperature Rating 105 C
Family Brand Name 3M
Insulation Material Nylon
Conductor Type Copper
Terminal Size 16 - 14 AWG
Barrel Length 0.30 in
Blade Dimensions 0.155 in dia x 0.031 in T
Used With Copper Wire
Sub Brand Scotchlok
Max Operating Temperature 105 C
Overall Length 1.02 in
