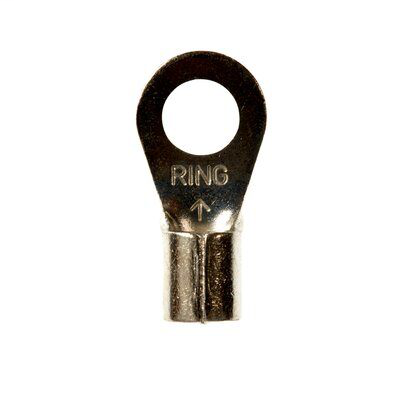

3M M8-14R/SX 10/Bottle Non-Insulated Ring
180 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 10 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M8-14R/SX
Viking Electric Part # 43015

Features

  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • 3M™ Scotchlok™ Small Ring Tongue Terminal ensures an optimum fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Beveled mouth offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • 3M™ Scotchlok™ Standard Small Ring Tongue Terminal has a non-insulated, silver brazed-seam barrel with a beveled mouth that guides the wire into position and withstands crimping pressures or operating stresses. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Stud size 1/4 in
  • Accommodates wire size 8 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611458391
  • Manufacturing Origin: USA
  • Brand: Scotchlok™
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Maximum Conductor Size: 8 AWG
  • Minimum Conductor Size: 8 AWG
  • Overall Width (Imperial): 0.47 in
  • Overall Width (Metric): 11.938 mm
  • Product Color: Metal
  • Terminal Type: Ring

Overview

UPC 05112858694
Long Description 3M Scotchlok Small Ring Tongue Terminal ensures an optimum fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128586945
Type Ring
Family Brand Name Scotchlok
Terminal Size 8 AWG
Sub Brand Scotchlok
Width 0.47 in
Color Metal
Thickness 0.05 in
Barrel Type Brazed
Material ETP Copper
Terminal Style Standard
Terminal Type Ring
Conductor Size 8 AWG
Insulation Material Non-Insulated
