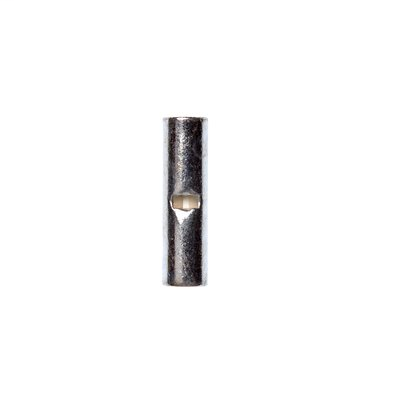

3M M10BCX 50/Bottle Seamless Non-Insulated Butt Connector
Product image thumbnail 0
Product image thumbnail 1
Usually available within 6 to 8 Days
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M10BCX
Viking Electric Part # 42830

Features

  • Non-insulated, seamless barrel ensures a secure fit and offers reliable performance
  • Offers electrical connection to a pre-stripped end of a stranded wire
  • Built-in wire stop for correct positioning
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Specifications

  • Body Material: Copper Alloy
  • Connector Type: Butt
  • Insulation Material: Non-Insulated
  • Maximum Conductor Size: 10 AWG
  • Minimum Conductor Size: 12 AWG
  • Overall Length (Imperial): 0.81 in
  • Overall Length (Metric): 20.574 mm
  • Product Color: Metal

Overview

UPC 05112858726
Long Description 3M Scotchlok Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a non-insulated, seamless barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128587263
Type Butt
Family Brand Name Scotchlok
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Length 0.81 in
Thickness 0.038 in
Barrel Type Seamless
Terminal Style Standard
Terminal Type Butt
Conductor Size 12 To 10 AWG
Insulation Material Non-Insulated
Barrel Length 0.38 in
Color Metal
Overall Length 0.81 in
