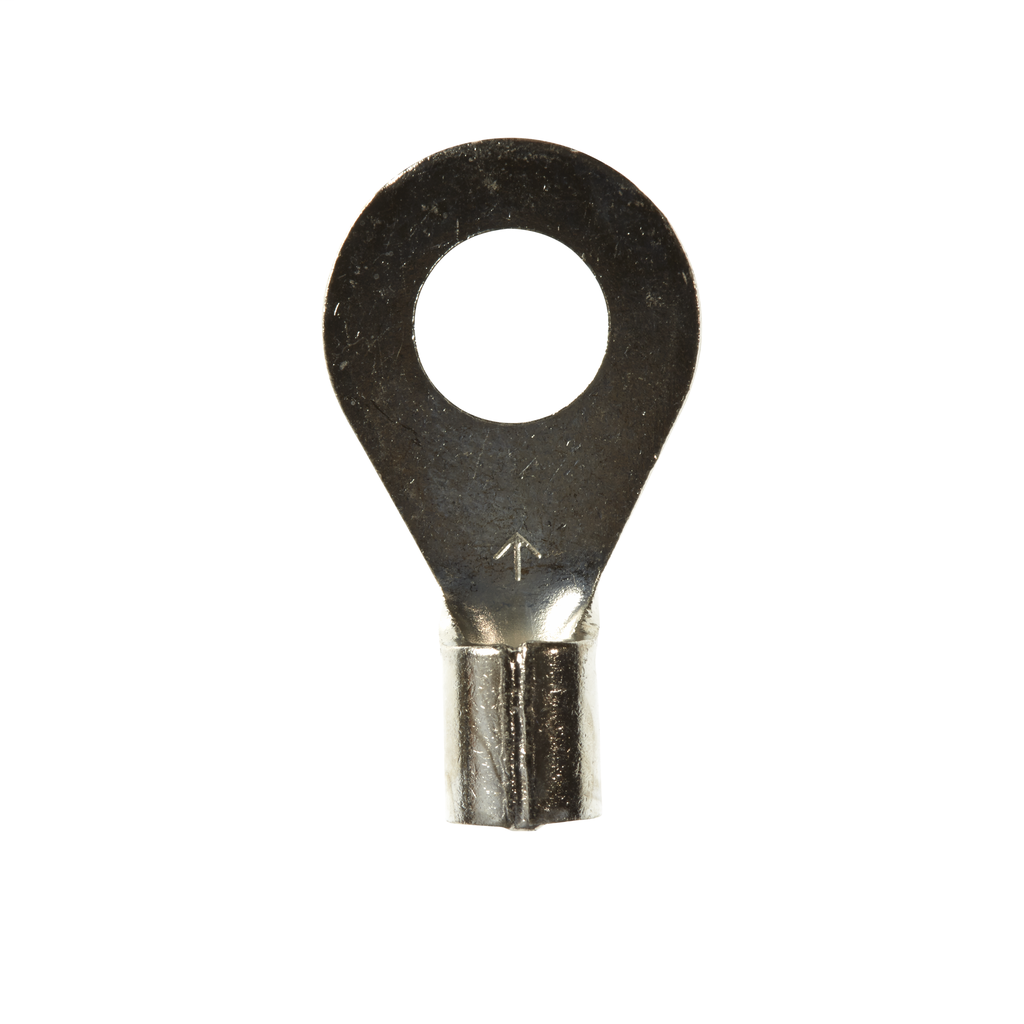

3M M10-14R/SX 50/Bottle Non-Insulated Ring
Product image thumbnail 0
Product image thumbnail 1
Usually available within 6 to 8 Days
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M10-14R/SX
Viking Electric Part # 42822

Features

  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size 1/4 in
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Specifications

  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 10 AWG
  • Minimum Conductor Size: 12 AWG
  • Overall Length (Imperial): 0.96 in
  • Overall Width (Imperial): 0.54 in
  • Terminal Type: Ring

Overview

UPC 05112858683
Long Description 3M Scotchlok Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128586839
Length 0.96 in
Width 0.54 in
Type Ring
Thickness 0.04 in
Barrel Type Brazed
Stud Size 1/4 in
Terminal Style Standard
Terminal Type Ring
Conductor Size 12 To 10 AWG
Family Brand Name Scotchlok
Insulation Material Non-Insulated
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Overall Length 0.96 in
