3M M10-10RX 50/Bottle Non-Insulated Ring
500 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M10-10RX
Viking Electric Part # 42821

Overview

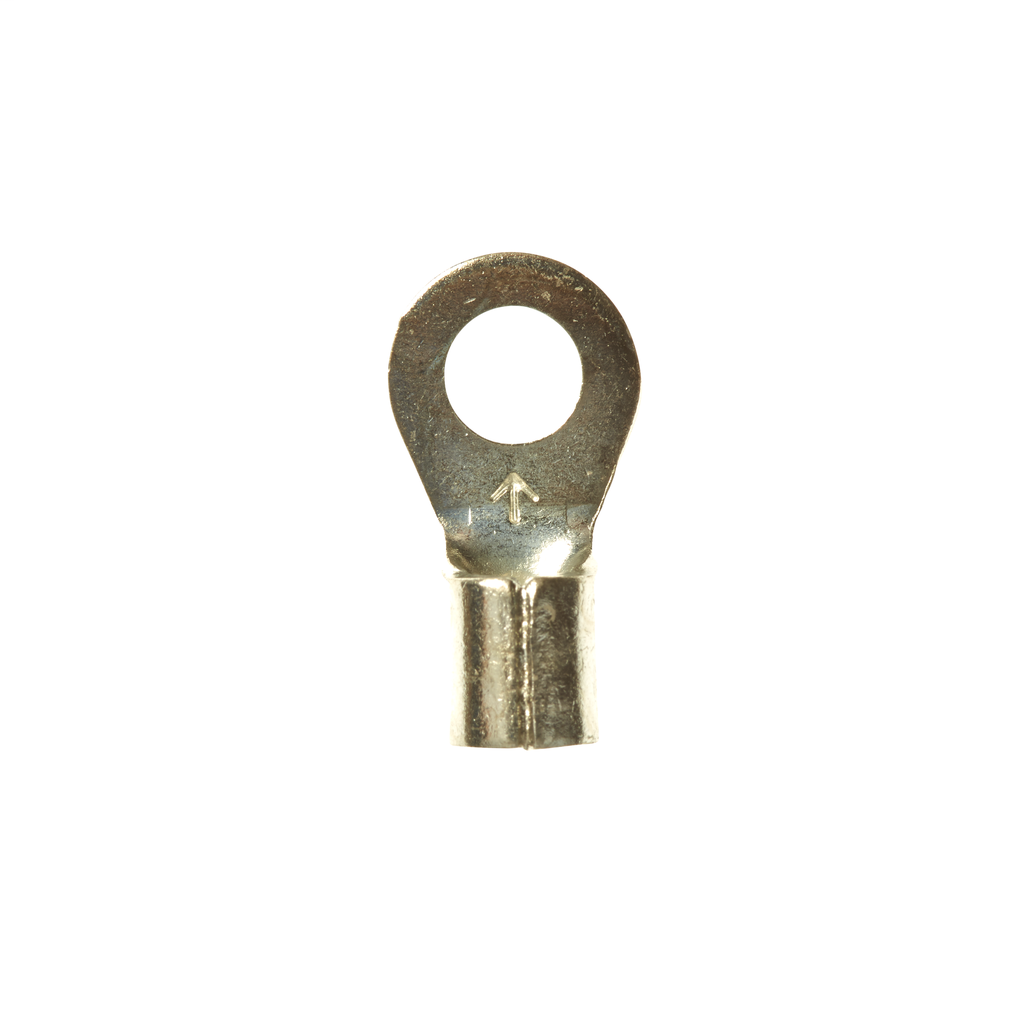

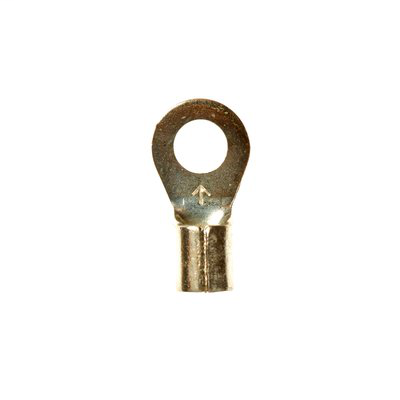

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size #10
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Specifications

  • 3M ID: 80611458276
  • Agency Approvals: UL and CSA
  • Barrel Style: Brazed
  • Brand: Scotchlok™
  • Clearance (C): 0.29 Inch
  • Color: Metal
  • Conductor Size: 12 - 10 AWG
  • Conductor Sizes: 12 - 10 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.54 Inch
  • Insulation Material: Non-Insulated
  • Length: 0.73 Inch
  • Length (Metric): 18.54 mm
  • Material: Plastic
  • Maximum Operating Temperature (Celsius): 175 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 347 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Wire Gauge: 12 AWG
  • Packaging: 50 per bottle
  • Product Type: Connector
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #10
  • Terminal Style: Standard
  • Terminal Type: Ring
  • Thickness: 0.04 Inch
  • Thickness (Metric): 1.01 mm
  • Trademark: Scotchlok
  • UL File Number: E23438
  • Width: 0.38 Inch
  • Width (Metric): 9.65 mm

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858682
Long Description 3M Scotchlok Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128586822
Length 0.73 in
Width 0.38 in
Color Metal
Type Ring
Thickness 0.04 in
Barrel Type Brazed
Material Plastic
Terminal Style Standard
Terminal Type Ring
Product Type Connector
Conductor Size 10 AWG
Family Brand Name 3M
Insulation Material Non-Insulated
Terminal Size 12 - 10 AWG
Max Operating Temperature 347 degrees F
Sub Brand Scotchlok
