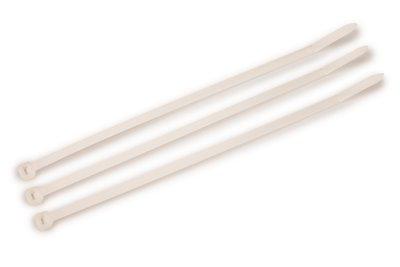

3M CT8NT50-C 100/Bag 8 Inch Natural 50 lb Cable Tie

37,800 Available for Delivery

Order by for Delivery

Usually available for pickup within 24 Hours

Adding...

Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing

Manufacturer	3M
Mfg Catalog #	CT8NT50-C
Viking Electric Part #	28712

Features

Secure wire bundles and harness components quickly, without slipping
Curved tip allows for faster threading and installation
Made in the USA
UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces

Specifications

Approximate Length: 8
Cable Diameter Range: 8,1 - 39,4 mm
Cable Length (Imperial): 8 in
Cable Length (Metric): 193.04 mm
Cable Management Products: Cable Ties
Cable Tie Base Height: 8 in
Cable Tie Length: 193 mm
Cable Tie Type: Miniature
Color Family: Beige
Flammability Rating: UL 94 V-2
Material: Nylon 6/6
Maximum Bundle Diameter: 1.87 Inch
Maximum Bundle Diameter (Metric): 51 mm
Maximum Insulation Outer Diameter (Metric): 3.7 mm
Maximum Insulation Outside Diameter: 0.145 in
Maximum Operating Temperature: 85 Degree Celsius
Maximum Operating Temperature (Celsius): 85 Degree Celsius
Maximum Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
Maximum Recommended Voltage Rating: 600 V
Mil Spec: MS3367-1-9
Minimum Bundle Diameter: 0.0625 Inch
Minimum Bundle Diameter (Metric): 1.6 mm
Minimum Installation Temperature (Celsius): -20 Degree Celsius
Minimum Installation Temperature (Fahrenheit): -4 Degree Fahrenheit
Minimum Operating Temperature (Celsius): -40 Degree Celsius
Minimum Operating Temperature (Fahrenheit): -40 Degree Fahrenheit
Minimum Order Quantity: 100
Operating Temperature (Celsius): 85 Degree Celsius
Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
Operating Temperature Range (Celsius): -40 °C to 85 °C
Operating Temperature Range (Fahrenheit): -40 °F to 185 °F
Overall Length (Imperial): 7.6 in
Overall Length (Metric): 193 mm
Overall Width (Imperial): 0.18 in
Overall Width (Metric): 4.6 mm
Package Quantity: 100
Plenum Rated: Yes
RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
Tape Type: Barricade
Tensile Strength (Imperial): 50 lbs
Tensile Strength (Metric): 22.68 kg
Type: Standard
UL Approval: Yes
UV Resistant: No

Overview

UPC	05112859297
Long Description	Plenum ratedSelf locking headCurved tip allows for faster threading and installationNatural colour
GTiN	00051128592977
Length	8 in
Width	0.18 in
Color	Natural
Type	Standard
Thickness	0.054 in
Material	Polyamide
Applications	For General use
Temperature Rating	-40 to 85 C
Family Brand Name	3M
Max Operating Temperature	185 degrees F
Cable Length	8 in
Standard Packaging Qty	100/Bag
Environmental Conditions	UL 94 Requirements, V2 Rated Flammability
Tensile Strength	50 lb
Bundle Diameter	2 in
Overall Length	7.6 in
