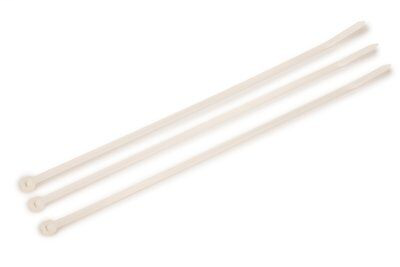

3M CT8NT18-C 100/Bag 8 Inch Natural 18 lb Cable Tie
Product image thumbnail 0
Product image thumbnail 1
Usually available within 6 to 8 Days
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # CT8NT18-C
Viking Electric Part # 28711

Features

  • Secure wire bundles and harness components quickly, without slipping
  • Curved tip allows for faster threading and installation
  • Made in the USA
  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces

Specifications

  • Approximate Length: 8
  • Cable Diameter Range: 8,1 - 39,4 mm
  • Cable Length (Imperial): 8 in
  • Cable Length (Metric): 205.74 mm
  • Cable Management Products: Cable Ties
  • Cable Tie Base Height: 8 in
  • Cable Tie Length: 193 mm
  • Cable Tie Type: Miniature
  • Color Family: Beige
  • Flammability Rating: UL 94 V-2
  • Material: Nylon 6/6
  • Maximum Bundle Diameter: 2 Inch
  • Maximum Bundle Diameter (Metric): 50.8 mm
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature: 85 Degree Celsius
  • Maximum Operating Temperature (Celsius): 85 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Minimum Bundle Diameter: 0.0625 Inch
  • Minimum Bundle Diameter (Metric): 1.6 mm
  • Minimum Installation Temperature (Celsius): 0 Degree Celsius
  • Minimum Installation Temperature (Fahrenheit): 32 Degree Fahrenheit
  • Minimum Operating Temperature (Celsius): -40 Degree Celsius
  • Minimum Operating Temperature (Fahrenheit): -40 Degree Fahrenheit
  • Minimum Order Quantity: 100
  • Operating Temperature (Celsius): 85 Degree Celsius
  • Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Operating Temperature Range (Celsius): -40 °C to 85 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 185 °F
  • Overall Length (Imperial): 8.1 in
  • Overall Length (Metric): 206 mm
  • Overall Width (Imperial): 0.096 in
  • Overall Width (Metric): 2.4 mm
  • Package Quantity: 100
  • Plenum Rated: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tensile Strength (Imperial): 18 lbs
  • Tensile Strength (Metric): 8.17 kg
  • Type: Standard
  • UL Approval: Yes
  • UV Resistant: No

Overview

UPC 05112859282
Long Description 3M Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.
GTiN 00051128592823
Length 8 in
Width 0.096 in
Color Beige
Type General Use
Thickness 0.045 Inch
Applications General Use
Family Brand Name 3M
Tensile Strength Miniature (18 pound)
Bundle Diameter 2 Inch
Material Nylon
Max Operating Temperature 185 degrees F
Overall Length 8.1 in
