Overview

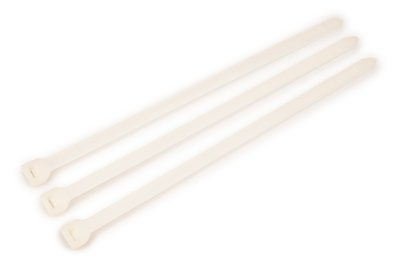

3M™ Light Heavy-Duty Cable Ties hold wire bundles and harness components securely without slipping. These ties are made of nylon 6/6 to withstand harsh environmental conditions. The ends of the cable ties possess curved tips that allow faster threading and installation. They withstand a maximum operating temperature range of -40 to 185 degrees F (-40 to 85 degrees C).
3M™ Light Heavy-Duty Cable Ties feature curved tips and a self-locking head that assures locking in any position to bind the bundle wires or cables easily. They are compatible to use with most standard tensioning/cutoff tools for fast production line fastening. They can be used in more demanding commercial and industrial jobs when extra strength is required. UL Listed, RoHS 2011/65/EU Compliant and Plenum-rated.
- Curved tips offer faster threading and installation
- Self-locking head assures locking in any position
- Secure wire bundles and harness components quickly
- Measures 0.3 in x 9 in
- Tensile strength of 120 lbs
- Tough construction of natural color nylon 6/6 for indoor applications
- Withstands a wide temperature range of -40 to 185 degrees F (-40 to 85 degrees C)
- Bind the bundle of wires or cables easily
- UL Listed, RoHS 2011/65/EU Compliant and Plenum-rated
- 50/bag, 500/case
Specifications
- 3M ID: 80611469703
- Agency Approvals: UL, UL Listed 62275 Type 21
- Approximate Length: 8
- Brand: 3M™
- Cable Diameter Range: 8,1 - 39,4 mm
- Cable Length: 8 Inch
- Cable Length (metric): 228.6 mm
- Cable Management Products: Cable Ties
- Cable Tie Length: 203 mm
- Color: Natural
- Flammability Rating: UL 94 V-2
- Length: 9 Inch
- Length (Metric): 229 mm
- Material: Nylon 6/6
- Maximum Bundle Diameter: 2 Inch
- Maximum Bundle Diameter (metric): 4.8 mm, 50.8 mm, 51 mm
- Maximum Operating Temperature: 85 Degree Celsius
- Maximum Operating Temperature (Celsius): 85 Degree Celsius
- Maximum Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
- Minimum Bundle Diameter (metric): 4.8 mm
- Minimum Installation Temperature (Celsius): -20 Degree Celsius
- Minimum Installation Temperature (Fahrenheit): -4 Degree Fahrenheit
- Operating Temperature (Celsius): 85 Degree Celsius
- Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
- Operating Temperature Range (Celsius): -40 °C to 85 °C
- Operating Temperature Range (Fahrenheit): -40 °F to 185 °F
- Plenum Rated: RoHS 2011/65/EU Compliant, Yes
- RoHS 2011/65/EU Compliant: RoHS 2011/65/EU Compliant, Yes
- RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
- Solution for: Wireless Network: Infrastructure Accessories
- Tensile Strength: Light Heavy Duty (120 lb)
- Tensile Strength (metric): 54.431 kg
- Thickness: 0.069 Inch
- Thickness (Metric): 1.8 mm
- Trademark: 3M
- Type: Standard
- UV Resistant: No, UV Resistant
- Width: 0.298 Inch
- Width (Metric): 7.6 mm
Legal Disclaimer
- Manufacturing Origin: USA
- The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
- Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
