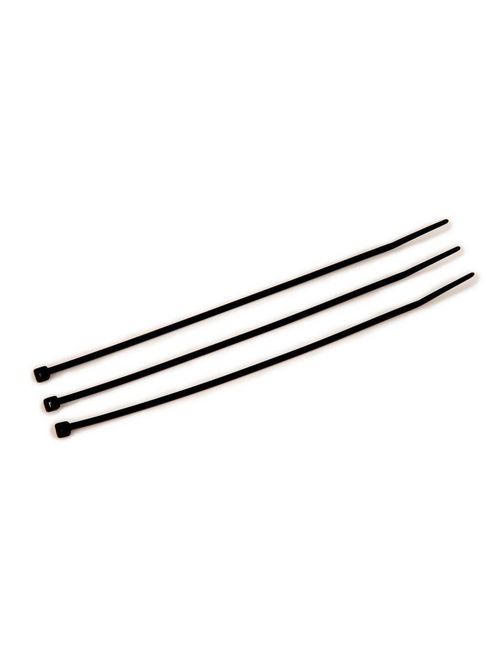

3M CT6BK40-M CT6BK30-M 6in BK 30 LB
Product image thumbnail 0
Product image thumbnail 1
6,000 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # CT6BK40-M
Viking Electric Part # 28702

Features

  • Secure wire bundles and harness components quickly, without slipping
  • Curved tip allows for faster threading and installation
  • Made in the USA
  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces

Specifications

  • Approximate Length: 6
  • Cable Length (Imperial): 6 in
  • Cable Length (Metric): 147.32 mm
  • Cable Management Products: Cable Ties
  • Color Family: Black
  • Flammability Rating: UL 94 V-2
  • Material: Nylon 6/6
  • Maximum Bundle Diameter: 1.25 Inch
  • Maximum Bundle Diameter (Metric): 32 mm
  • Maximum Operating Temperature: 85 Degree Celsius
  • Maximum Operating Temperature (Celsius): 85 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Mil Spec: MS3367-5-0
  • Minimum Bundle Diameter: 0.0625 Inch
  • Minimum Bundle Diameter (Metric): 1.6 mm
  • Minimum Installation Temperature (Celsius): -20 Degree Celsius
  • Minimum Installation Temperature (Fahrenheit): -4 Degree Fahrenheit
  • Minimum Operating Temperature (Celsius): -40 Degree Celsius
  • Minimum Operating Temperature (Fahrenheit): -40 Degree Fahrenheit
  • Operating Temperature (Celsius): 85 Degree Celsius
  • Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Operating Temperature Range (Celsius): -40 °C to 85 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 185 °F
  • Overall Length (Imperial): 5.8 in
  • Overall Length (Metric): 147 mm
  • Overall Width (Imperial): 0.142 in
  • Overall Width (Metric): 3.6 mm
  • Package Quantity: 1000
  • Plenum Rated: Yes
  • Product Color: Black
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tensile Strength (Imperial): 40 lbs
  • Tensile Strength (Metric): 18.14 kg
  • Type: Standard
  • UV Resistant: Yes

Overview

UPC 05112859285
Long Description 3M Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.
GTiN 00051128592854
Length 6 in
Width 0.142 in
Color Black
Type General Use
Thickness 0.05 Inch
Applications General Use
Family Brand Name 3M
Tensile Strength Intermediate (40 pound)
Bundle Diameter 1.25 Inch
Material Nylon
Overall Length 5.8 in
