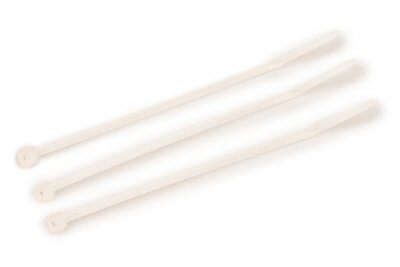

3M CT4NT18-M 1000/Bag 4 Inch Natural 18 lb Cable Tie
Product image thumbnail 0
Product image thumbnail 1
2,000 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # CT4NT18-M
Viking Electric Part # 28696

Features

  • Secure wire bundles and harness components quickly, without slipping
  • Curved tip allows for faster threading and installation
  • Made in the USA
  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces

Specifications

  • Approximate Length: 4
  • Cable Length (Imperial): 4 in
  • Cable Length (Metric): 104.14 mm
  • Cable Management Products: Cable Ties
  • Cable Tie Base Height: 4 in
  • Cable Tie Length: 101 mm
  • Cable Tie Type: Miniature
  • Color Family: Beige
  • Flammability Rating: UL 94 V-2
  • Material: Nylon 6/6
  • Maximum Bundle Diameter: 0.75 Inch
  • Maximum Bundle Diameter (Metric): 19.1 mm
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature: 85 Degree Celsius
  • Maximum Operating Temperature (Celsius): 85 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Mil Spec: MS3367-4-9
  • Minimum Bundle Diameter: 0.0625 Inch
  • Minimum Bundle Diameter (Metric): 1.6 mm
  • Minimum Installation Temperature (Celsius): 0 Degree Celsius
  • Minimum Installation Temperature (Fahrenheit): 32 Degree Fahrenheit
  • Minimum Operating Temperature (Celsius): 0 NP
  • Minimum Operating Temperature (Fahrenheit): -40 Degree Fahrenheit
  • Minimum Order Quantity: 1000
  • Operating Temperature (Celsius): 85 Degree Celsius
  • Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Operating Temperature Range (Celsius): -40 °C to 85 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 185 °F
  • Overall Length (Imperial): 4.1 in
  • Overall Length (Metric): 104 mm
  • Overall Width (Imperial): 0.1 in
  • Overall Width (Metric): 2.5 mm
  • Package Quantity: 1000
  • Plenum Rated: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tensile Strength (Imperial): 18 lbs
  • Tensile Strength (Metric): 8.17 kg
  • Type: Standard
  • UL Approval: Yes
  • UV Resistant: No

Overview

UPC 05112859276
Long Description 3M Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.
GTiN 00051128592762
Length 4.1 in
Width 0.1 in
Color Natural
Type General Use
Thickness 0.035 in
Material Nylon
Applications General Use
Temperature Rating -40 to 85 C
Family Brand Name 3M
Max Operating Temperature 185 degrees F
Cable Length 4 in
Standard Packaging Qty 1000/Bag
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Tensile Strength Miniature (18 pound)
Bundle Diameter 0.75 Inch
Overall Length 4.1 in
