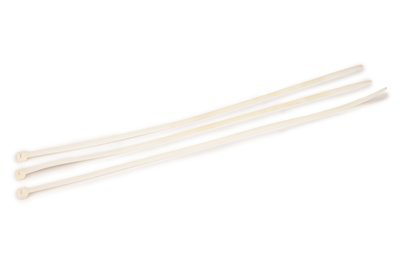

3M CT24NT175-L 50/Bag 24 Inch Natural 175 lb Cable Tie
Product image thumbnail 0
Product image thumbnail 1
2,750 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # CT24NT175-L
Viking Electric Part # 28690

Features

  • Secure wire bundles and harness components quickly, without slipping
  • Curved tip allows for faster threading and installation
  • Made in the USA
  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces

Specifications

  • Approximate Length: 24
  • Cable Length (Imperial): 24 in
  • Cable Length (Metric): 609.6 mm
  • Cable Management Products: Cable Ties
  • Color Family: Beige
  • Flammability Rating: UL 94 V-2
  • Material: Nylon 6/6
  • Maximum Bundle Diameter: 7.2 Inch
  • Maximum Bundle Diameter (Metric): 183 mm
  • Maximum Operating Temperature: 85 Degree Celsius
  • Maximum Operating Temperature (Celsius): 85 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Mil Spec: MS3367-8-9
  • Minimum Bundle Diameter: 0.125 Inch
  • Minimum Bundle Diameter (Metric): 3.2 mm
  • Minimum Installation Temperature (Celsius): 0 Degree Celsius
  • Minimum Installation Temperature (Fahrenheit): 32 Degree Fahrenheit
  • Minimum Operating Temperature (Celsius): -40 Degree Celsius
  • Minimum Operating Temperature (Fahrenheit): -40 Degree Fahrenheit
  • Minimum Order Quantity: 50
  • Operating Temperature (Celsius): 85 Degree Celsius
  • Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Operating Temperature Range (Celsius): 0 °C to 85 °C
  • Operating Temperature Range (Fahrenheit): 32 °F to 185 °F
  • Overall Length (Imperial): 24 in
  • Overall Length (Metric): 610 mm
  • Overall Width (Imperial): 0.335 in
  • Overall Width (Metric): 8.5 mm
  • Package Quantity: 50
  • Plenum Rated: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tensile Strength (Imperial): 175 lbs
  • Tensile Strength (Metric): 79.38 kg
  • Type: Standard
  • UV Resistant: No

Overview

UPC 05112859319
Long Description 3M Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.
GTiN 00051128593196
Length 24 in
Width 0.335 in
Color Beige
Type Heavy Duty (175 lb)
Thickness 0.087 in
Material Nylon
Applications Heavy Duty
Family Brand Name 3M
Tensile Strength Heavy Duty (175 pound)
Bundle Diameter 7.2 in.
Max Operating Temperature 185 degrees F
Cable Length 24 in
Overall Length 24 in
