Overview

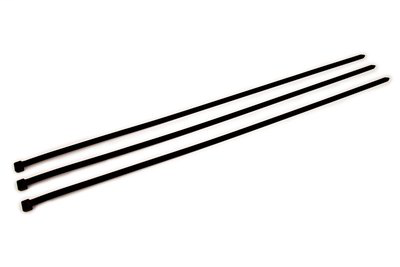

3M™ Cable Ties are made with high quality 6/6 nylon and designed to secure wire bundles and harness components quickly, without slipping. The 3M™ Cable Tie CT24BK175-L is 24.0" in length. UV Weather Resistant Black. 175 lb tensile strength. 50 pcs/bag.
- Plenum Rated
- Self Locking Head
- Curved tip allows for faster threading and installation
- UV weather resistant for outdoor use
Specifications
- 3M ID: 80611469778
- Agency Approvals: UL, UL Listed 62275 Type 21
- Approximate Length: 24
- Brand: 3M™
- Cable Length: 24 Inch
- Cable Length (metric): 609.6 mm
- Cable Management Products: Cable Ties
- Cable Tie Length: 609 mm
- Color: Black
- Flammability Rating: UL 94 V-2
- Length: 24 Inch
- Length (Metric): 610 mm
- Material: Nylon 6/6
- Maximum Bundle Diameter: 7.2 Inch
- Maximum Bundle Diameter (metric): 183 mm
- Maximum Operating Temperature: 85 Degree Celsius
- Maximum Operating Temperature (Celsius): 85 Degree Celsius
- Maximum Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
- Mil Spec: MS3367-8-0
- Minimum Bundle Diameter (metric): 3.2 mm
- Minimum Installation Temperature (Celsius): 0 Degree Celsius
- Minimum Installation Temperature (Fahrenheit): 32 Degree Fahrenheit
- Operating Temperature (Celsius): 85 Degree Celsius
- Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
- Operating Temperature Range (Celsius): 0 °C to 85 °C
- Operating Temperature Range (Fahrenheit): 32 °F to 185 °F
- Plenum Rated: RoHS 2011/65/EU Compliant, Yes
- RoHS 2011/65/EU Compliant: RoHS 2011/65/EU Compliant, Yes
- RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
- Solution for: Wireless Network: Infrastructure Accessories
- Tensile Strength: Heavy Duty (175 lb)
- Tensile Strength (metric): 79.379 kg
- Thickness: 0.087 Inch
- Thickness (Metric): 2.2 mm
- Trademark: 3M
- Type: Standard
- Units per bag: 50
- UV Resistant: RoHS 2011/65/EU Compliant, Yes
- Width: 0.335 Inch
- Width (Metric): 8.5 mm
Legal Disclaimer
- Manufacturing Origin: USA
- The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
- Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
