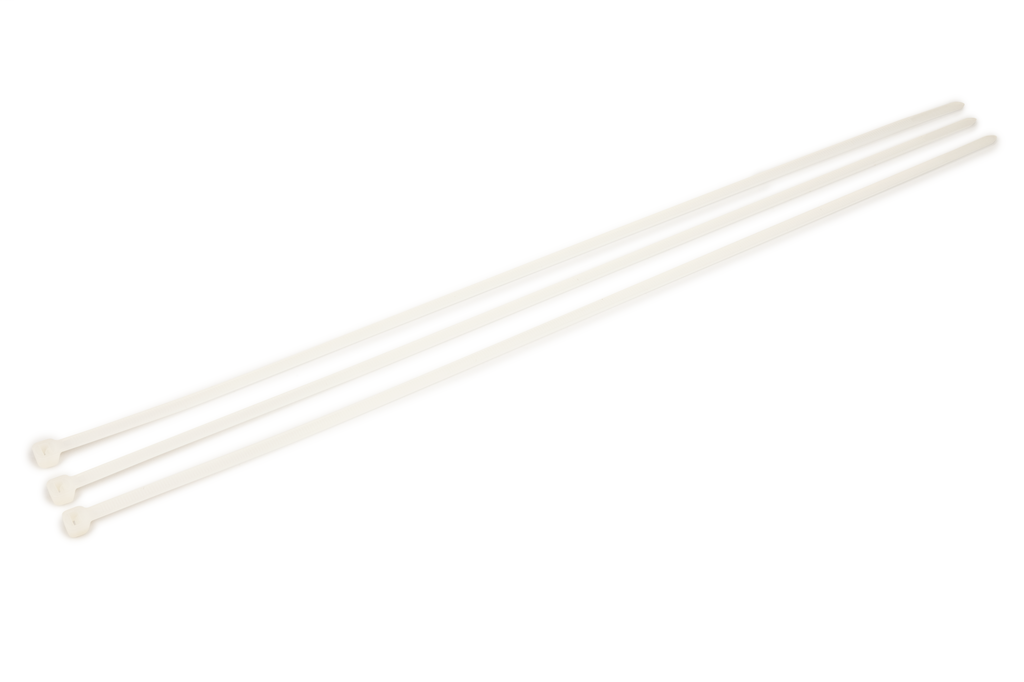

3M CT15NT50-C 100/Bag 15 Inch Natural 50 lb Cable Tie
Product image thumbnail 0
Product image thumbnail 1
5,800 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # CT15NT50-C
Viking Electric Part # 28684

Features

  • Secure wire bundles and harness components quickly, without slipping
  • Curved tip allows for faster threading and installation
  • Made in the USA
  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces

Specifications

  • Approximate Length: 15
  • Cable Length (Imperial): 15 in
  • Cable Length (Metric): 370.84 mm
  • Cable Management Products: Cable Ties
  • Cable Tie Base Height: 15 in
  • Cable Tie Length: 371 mm
  • Cable Tie Type: Standard
  • Color Family: Beige
  • Flammability Rating: UL 94 V-2
  • Material: Nylon 6/6
  • Maximum Bundle Diameter: 4 Inch
  • Maximum Bundle Diameter (Metric): 102 mm
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature: 85 Degree Celsius
  • Maximum Operating Temperature (Celsius): 85 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Mil Spec: MS3367-2-9
  • Minimum Bundle Diameter: 0.0625 Inch
  • Minimum Bundle Diameter (Metric): 1.6 mm
  • Minimum Installation Temperature (Celsius): -20 Degree Celsius
  • Minimum Installation Temperature (Fahrenheit): -4 Degree Fahrenheit
  • Minimum Operating Temperature (Celsius): -40 Degree Celsius
  • Minimum Operating Temperature (Fahrenheit): -40 Degree Fahrenheit
  • Minimum Order Quantity: 100
  • Operating Temperature (Celsius): 85 Degree Celsius
  • Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Operating Temperature Range (Celsius): -40 °C to 85 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 185 °F
  • Overall Length (Imperial): 14.6 in
  • Overall Length (Metric): 371 mm
  • Overall Width (Imperial): 0.18 in
  • Overall Width (Metric): 4.6 mm
  • Package Quantity: 100
  • Plenum Rated: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tape Type: Barricade
  • Tensile Strength (Imperial): 50 lbs
  • Tensile Strength (Metric): 22.68 kg
  • Type: Standard
  • UL Approval: Yes
  • UV Resistant: No

Overview

UPC 05112859307
Long Description 3M Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.
GTiN 00051128593073
Length 14.6 in
Width 0.18 in
Color Beige
Type General Use
Thickness 0.054 in
Applications General Use
Family Brand Name 3M
Tensile Strength Standard (50 pound)
Bundle Diameter 4 in.
Material Nylon
Max Operating Temperature 185 degrees F
Cable Length 15 in
Overall Length 14.6 in
