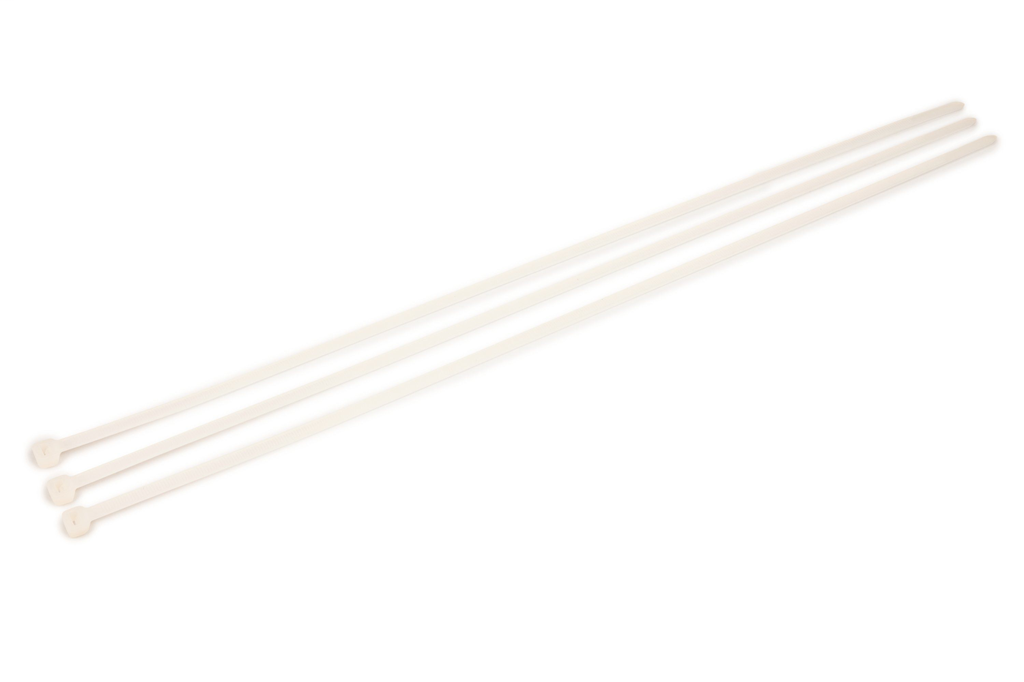

3M CT15NT120-C 100/Bag 15 Inch Natural 120 lb Cable Tie
2,000 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # CT15NT120-C
Viking Electric Part # 28682

Overview

3M™ Cable Ties are made with high quality 6/6 nylon and designed to secure wire bundles and harness components quickly, without slipping. The 3M™ Cable Tie CT15NT120-C is 15.0" in length. Natural. 120 lb tensile strength. 100 pcs/bag.

  • Plenum Rated
  • Self Locking Head
  • Curved tip allows for faster threading and installation

Specifications

  • 3M ID: 80611469745
  • Agency Approvals: UL, UL Listed 62275 Type 21
  • Approximate Length: 15
  • Brand: 3M
  • Cable Length: 15 Inch
  • Cable Length (metric): 381 mm
  • Cable Management Products: Cable Ties
  • Color: Natural
  • Flammability Rating: UL 94 V-2
  • Length: 15 Inch
  • Length (Metric): 381 mm
  • Material: Nylon 6/6
  • Maximum Bundle Diameter: 4 Inch
  • Maximum Bundle Diameter (metric): 101.6 mm, 102 mm, 4.8 mm
  • Maximum Operating Temperature: 85 Degree Celsius
  • Maximum Operating Temperature (Celsius): 85 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Mil Spec: MS3367-3-9
  • Minimum Bundle Diameter (metric): 4.8 mm
  • Minimum Installation Temperature (Celsius): -20 Degree Celsius
  • Minimum Installation Temperature (Fahrenheit): -4 Degree Fahrenheit
  • Operating Temperature (Celsius): 85 Degree Celsius
  • Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Operating Temperature Range (Celsius): -40 °C to 85 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 185 °F
  • Plenum Rated: RoHS 2011/65/EU Compliant, Yes
  • RoHS 2011/65/EU Compliant: RoHS 2011/65/EU Compliant, Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Solution for: Wireless Network: Infrastructure Accessories
  • Tensile Strength: Light Heavy Duty (120 lb)
  • Tensile Strength (metric): 54.431 kg
  • Thickness: 0.069 Inch
  • Thickness (Metric): 1.8 mm
  • Trademark: 3M
  • Type: Standard
  • UV Resistant: No, UV Resistant
  • Width: 0.298 Inch
  • Width (Metric): 7.6 mm

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112859315
Long Description 3M Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.
GTiN 00051128593158
Length 15 in
Width 0.298 in
Color Natural
Type Light Heavy Duty (110-120 lb)
Thickness 0.069 in
Material Nylon 6/6
Applications Light Heavy Duty
Family Brand Name 3M
Tensile Strength Light Heavy Duty (120 pound)
Bundle Diameter 4 in.
Max Operating Temperature 185 degrees F
Cable Length 15 in
