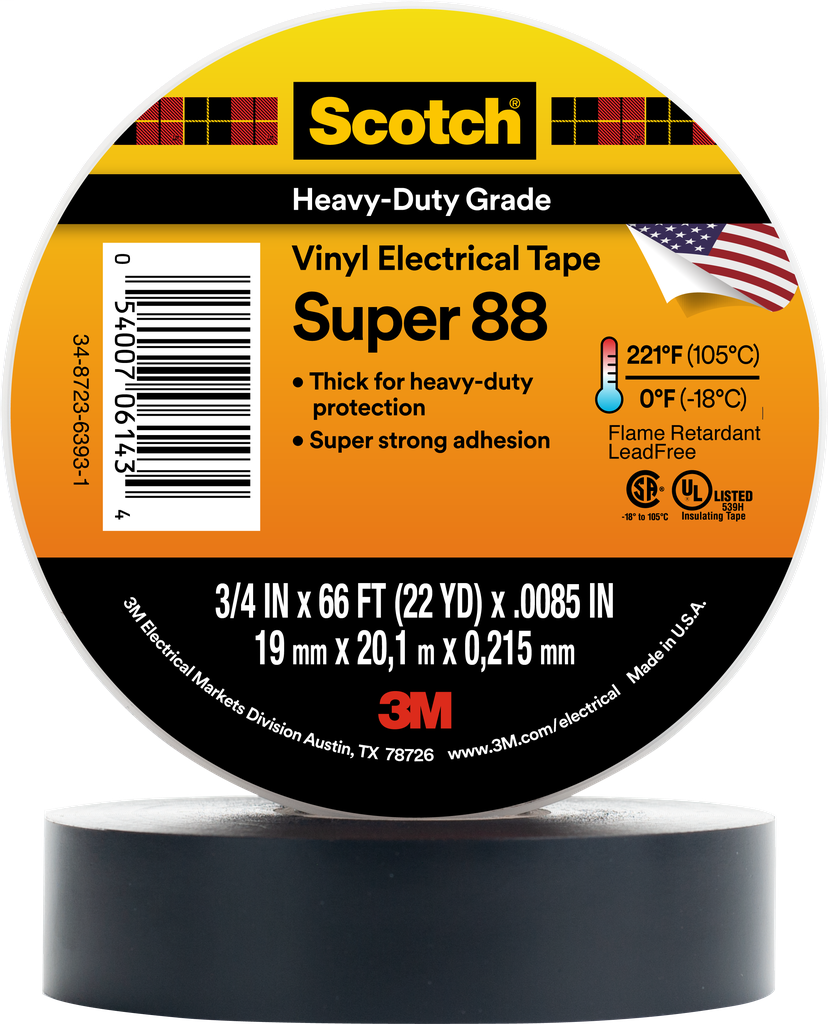

3M 88-3/4X66FT 06143 SUPER 88 3/4"
233 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 88-3/4X66FT
Viking Electric Part # 17038


  • The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers excellent electrical and mechanical protection
  • Provides high resistance to UV rays, abrasion, moisture, alkalis, acids, corrosion and varying weather conditions
  • Provides a protective jacket and electrical insulation for splices and cables
  • Made of durable PVC
  • Withstands a temperature range of 0 to 221 °F (-18 to 105 °C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant


  • Adhesion Strength: 28 oz/in
  • Adhesion to Steel: en-CA: 28 oz./in. (3.0 N/10 mm) - en-US: 28 oz./in. (3.0 N/10 mm) - fr-CA: 28 oz./in. (3.0 N/10 mm)
  • Adhesive Material: Based adhesive rubber pressure sensitive
  • Adhesive Type: Rubber
  • Application: Electrical Maintenance
  • Backing Material: Vinyl - Polyvinyl Chloride
  • Breaking Strength (Imperial): 20 lb/in
  • Chemical Resistant: Yes
  • Elongation at Break: 250%
  • Family: Scotch® Vinyl Electrical Tape Super 88
  • Flame Retardant: Yes
  • Insulation Resistance: > 10^6 megohms
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 220 Degree Fahrenheit
  • Overall Length (Imperial): 66 ft
  • Overall Length (Metric): 20 m
  • Overall Width (Imperial): 0.75 in
  • Overall Width (Metric): 19.05 mm
  • Product Color: Black
  • Product Form: Roll
  • Product Type: Vinyl Electrical Tapes
  • Tape Grade: Premium
  • Tape Length (Metric): 20.1 m
  • Tape Width (Metric): 19.1 mm
  • UV Resistant: Yes
  • Voltage Rating: 600 V


UPC 05400706143
Long Description Scotch Vinyl Electrical Tape Super 88 is an 8.5 mil thick, premium grade, all weather tape that is designed to provide a protective jacket and primary electrical insulation for splices up to 600V. The flame retardant tape withstands a temperature range of 0 to 221 F ( 18 to 105 C).
GTiN 00054007061434
Length 66 ft
Width 0.75 in
Size 3/4x66FT
Color Black
Type Vinyl
Thickness 8.5 Milli-inch (mil)
Material PVC
Backing Material Polyvinyl Chloride
Applications Electrical Maintenance
Family Brand Name 3M
Sub Brand Scotch
Adhesive Type Rubber
Overall Length 66 ft
