3M 85-12 Multi-Mold Resin Splicing Kits
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
13 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 85-12
Viking Electric Part # 16518

Features

  • Includes flexible film plastic mold with built-in spacer web and sealing strips along the adjacent edges
  • 3M™ Scotchcast™ Multi-Mold Resin Splice Kits 85 Series are a group of versatile splice kits for insulating and waterproofing odd-sized and odd-shaped splices in underground applications, up to 1000 volts. Splices may be inline, wye, X, butt and dead-end splice configurations (for non-shielded cable) using split bolts, H tap or C tap compression connectors.
  • 3M™ Scotchcast™ Electrical Insulating Resin 2104 in a convenient closed mixing pouch
  • Includes comprehensive instruction booklet showing installation techniques for typical splice configurations, in both the horizontal and vertical positions.

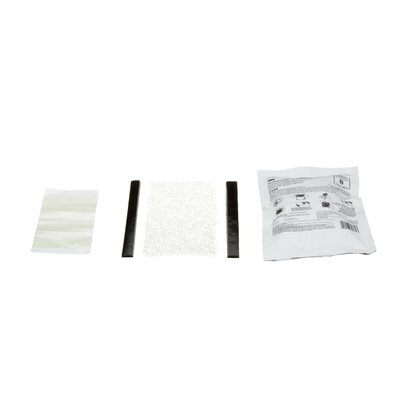

  • 3M™ Scotchcast™ Multi Mold Resin Splice Kit 85 Series includes a flexible film plastic mold, electrical insulating resin 2104, pressure sensitive adhesive film sealing strip and a comprehensive instruction booklet. Using split bolts, H tap or C tap compression connectors, it provides inline, wye, X, butt and dead end splice configurations. It has a flexible film plastic mold with a built in porous spacer web for ensuring proper thickness of insulating compound. The splice kit is perfect for direct burial applications, underground systems, joining of cable reel ends, cable failures and dig ins. RoHS 2011/65/EU Compliant‎.
  • Includes pressure-sensitive adhesive film sealing strip
  • RoHS 2011/65/EU Compliant‎

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80610077119
  • Brand: Scotchcast™
  • Cable Shielding: Non-shielded
  • Cable Type: Power Cable
  • Conductor Amount: Multiple || Single
  • Conductor Sizes: 1 AWG || 2/0 AWG
  • H or C Tap Compression Maximum Conductor Sizes: 2/0 AWG Stranded
  • Manufacturing Origin: USA
  • Maximum Cable Outside Diameter: 3/4 Inch(run & tap)
  • Maximum Cable Outside Diameter (Metric): 19.1 mm (run & tap)
  • Maximum Conductor Size: 2/0 AWG
  • Minimum Conductor Size: 1 AWG
  • Product Type: Resin Splice
  • Splice Type: Resin
  • Split Bolt Maximum Conductor Sizes: 1 AWG stranded
  • Voltage: 1 kV

Overview

UPC 05400711847
Long Description N95 approved filtering facepiece particulate respirator for certain non-oil based particles3M Cool Flow Valve for cooler, drier comfortCake-resistant filter mediaFlame resistant as demonstrated per modified ASTM D2859 (not a substitute for a face shield)Compatible with a variety of protective eyewear and hearing protectionAdjustable nose clip reduces potential for eyewear fogging and helps ensure a better seal and fitFully adjustable head straps help provide a secure fit
GTiN 00054007118473
Length 7 in
Color Black
Type Resin Splice
Conductor Size 1 AWG Stranded (Split Bolt), 2/0 AWG Stranded (Compression Tap)
Applications For Direct Burial Applications, Underground Systems, Joining of Cable Reel Ends, Cable Failures and Dig-Ins
Cable Type Power Cable
Cable Size 1 AWG; 2/0 AWG
Family Brand Name 3M
Sub Brand Scotchcast
Voltage 1k Volt
