3M 82AN INLINE POWER CABLE RESIN SPLICE KIT
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
7 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 82-AN
Viking Electric Part # 164448

Features

  • Insulates and seals unshielded, single conductor cables and multiple conductor cables
  • Splices non-shielded wet or dry cables
  • 3M™ 82-AN Series Inline Resin Power Cable Splice Kit is designed to insulate and seal 5kV rated unshielded, single conductor cables and 1 kV rated multiple conductor cables. It is suitable for use in weather exposed or direct burial locations.
  • Designed for weather-exposed or direct burial locations

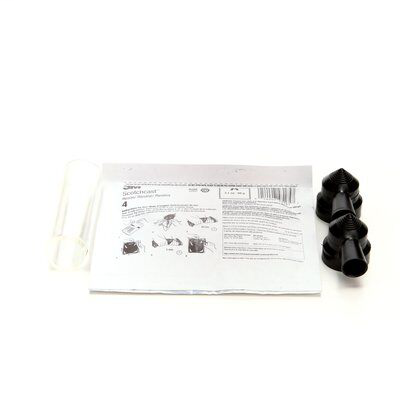

  • 3M™ 82-AN Series Inline Resin Power Cable Splice Kit includes a mold body, pouring spouts, 23 electrical tape and No. 4 resin. It is perfect for splicing non shielded wet or dry cables and single conductor or multiple conductor portable cables. UL Listed and RoHS 2011/65/EU Compliant.
  • Rated for 5 kV and 1 kV cables
  • UL Listed and RoHS 2011/65/EU Compliant

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611616683
  • Brand: Scotchcast™
  • Cable Shielding: Single Conductor Portable Cable
  • Conductor Amount: Multiple || Single
  • Conductor Size Range: 10-2 AWG
  • Conductor Sizes: 10 AWG || 2 AWG
  • Conductor Sizes for 1 kV and less: 2 AWG
  • Conductor Sizes for 5 kV: 2 AWG
  • Insulation O.D. Range: 0.406 - 0.750 Inch
  • Insulation Outside Diameter Range: 0.406 - 0.750 Inch
  • Insulation Outside Diameter Range (Metric): 10 - 19 mm
  • Manufacturing Origin: USA
  • Material: Epoxy
  • Maximum Cable Outside Diameter: 0.60 in
  • Maximum Cable Outside Diameter (Metric): 15.2 mm
  • Maximum Conductor Size: 2 AWG
  • Minimum Conductor Size: 2 AWG
  • National Stock Number: 5970009821383
  • Product Color: Black
  • Product Type: Splice
  • Splice Type: Inline
  • Voltage: 5 kV

Overview

UPC 05112861338
Family Brand Name 3M
Color Black
