3M 4NA ELECTRICAL INSULATING RESIN SIZE A 3.1 OZ.
Product image thumbnail 0
Product image thumbnail 1
9 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 4N-A
Viking Electric Part # 250215

Features

  • 80 Shore D hardness
  • Has 16-minute gel time at 73 °F (23 °C)
  • Useful for splicing solid dielectric and oil-filled cables up to 8 kV
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • Elongates 4% longer than its original size for easy insulation or wrapping
  • Withstands a voltage rating of 8 kV or less (for splicing solid dielectric and oil-filled cables)

Specifications

  • Cable Accessory Products: Electrical Resins
  • Cure Method: Room
  • Flexibility: Rigid
  • Form: Liquid
  • Gel Time: 16 Minutes at 73(deg)F (23(deg)C)
  • Hardness: 80 Shore D
  • Material: Epoxy
  • Maximum Operating Temperature: 130 Degree Celsius
  • Minimum Operating Temperature (Celsius): 0 Degree Celsius
  • Product Color: Black
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tensile Strength (Imperial): 4900 Pound-Force Per Square Inch

Overview

UPC 05112861347
Family Brand Name 3M
GTiN 00051128613474
Color Black

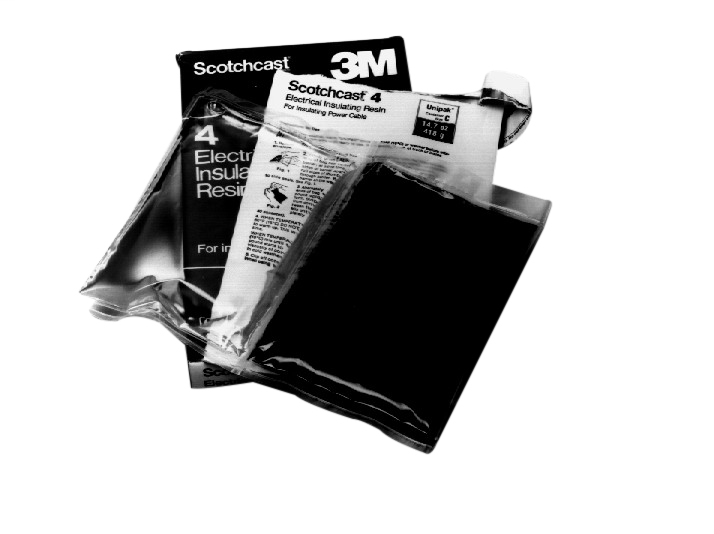

Long Description 3M Scotchcast Electrical Insulating Resin 4N, with nozzel and guard bag, is a 2 part, insulating and encapsulating, epoxy based, liquid resin that generates its own heat to cure. Compatible with solid/synthetic cable insulations and jackets, this resin makes an excellent insulator and sealer for cable splicing.
Material Epoxy
