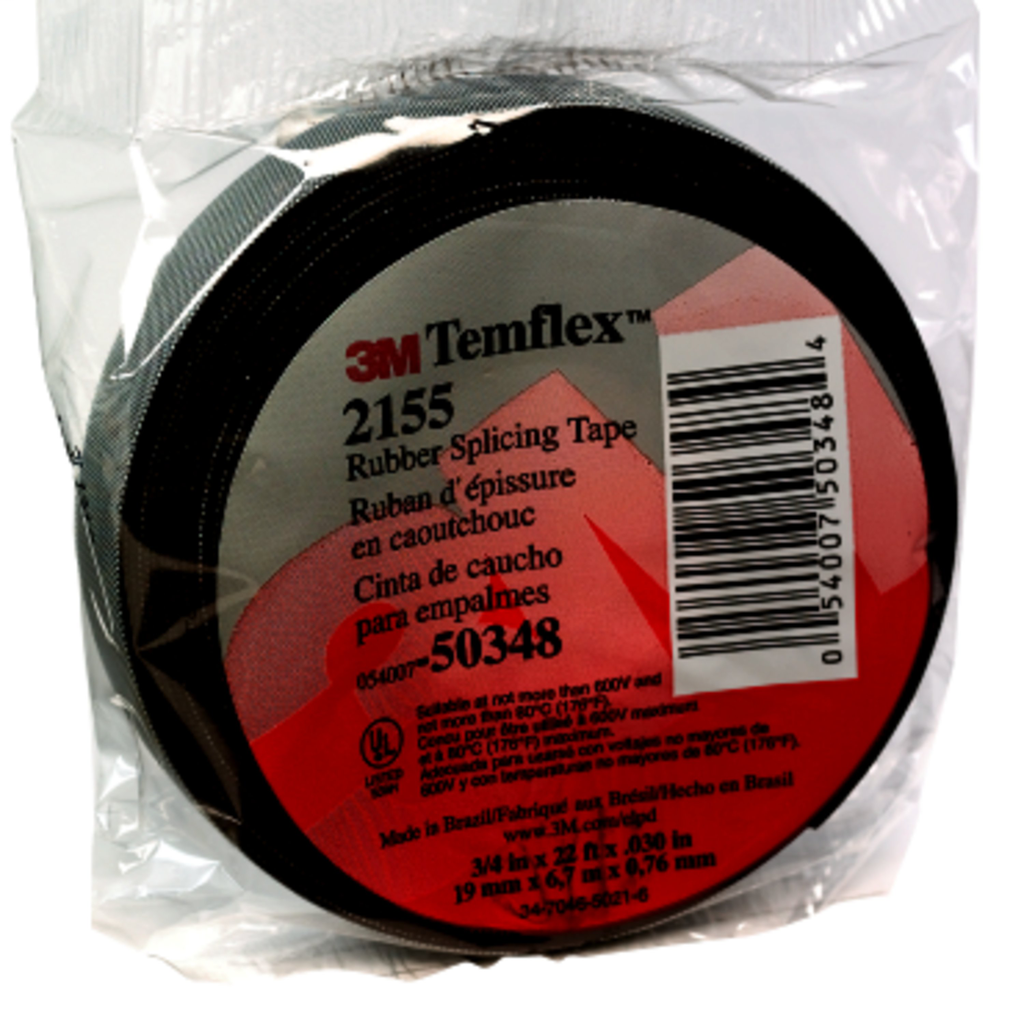

3M 2155-3/4X22FT Splicing Tape
81 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 2155-3/4x22FT
Viking Electric Part # 4099

Features

  • Rubber resin provides excellent adherence
  • 3M™ Temflex™ Tape 2155 is a 30 mil, general purpose, highly conformable, electrically insulating, low voltage rubber splicing tape. The self fusing tape is designed to offer guaranteed performance when used with solid dielectric cable insulations and has a liner, which will not stick to the tape upon unwind. It withstands a wide temperature range of 176 °F (80 °C).
  • Self-fusing rubber backing offers durability and resists tears as well as abrasion
  • 3M™ Temflex™ Splicing Tape 2155 with self fusing rubber backing, has rubber resin adhesive that offers optimized adherence. This tape is designed for low voltage electrical insulating and moisture sealing applications. It maintains the flexibility over a wide range of temperatures. Electrical insulating tape finds application in bolted connections, service drops, lightning connections, ground rod connections and motor leads. UL Listed and RoHS 2011/65/EU Compliant.
  • Withstands temperatures up to 176 °F (80 °C)
  • UL Listed and RoHS 2011/65/EU Compliant

Specifications

  • 3M ID: HC000592382
  • Adhesion to Steel: N/A
  • Adhesive Material: Rubber Resin
  • Adhesive Type: Rubber Resin
  • Agency Approvals: UL Listed || UL Listed, File E129200
  • Application: Electrical Maintenance || Insulation
  • Backing Material: Rubber
  • Backing Thickness (Metric): 0.76 mm
  • Brand: Temflex™
  • Breaking Strength (Imperial): 9 lb/in
  • Case Quantity: 12 Rolls
  • Color Family: Black
  • Dielectric Strength (V/mil): 600
  • Elongation: 700 %
  • Elongation at Break: 7
  • Family: 3M™ Temflex™ Rubber Splicing Tape 2155
  • Gel Time: 28 Minutes at 140°F (60°C)
  • High Temperature Rating: 176°F (80°C)
  • Insulated: Yes
  • Liner/Linerless: Liner
  • Material: Silicone Rubber
  • Maximum Operating Temperature (Celsius): 80 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 176 Degree Fahrenheit
  • Minimum Order Quantity: 1 Roll
  • Operating Temperature (Fahrenheit): Up to 176 °F
  • Overall Length (Imperial): 22 ft
  • Overall Length (Metric): 6.7 m
  • Overall Width (Imperial): 0.75 in
  • Overall Width (Metric): 19 mm
  • Product Color: Black
  • Product Type: Rubber and Splicing Tapes
  • Self-extinguishing: No
  • Self-sticking: Yes
  • Shelf Life: 3 Year
  • Specifications Met: UL Listed
  • Suitable for High Voltage: No
  • Tape Color: Black
  • Tape Grade: General Use
  • Tape Length (Metric): 6.7 m
  • Tape Type: General Use Rubber Tape
  • Tape Width (Imperial): 0.75 in
  • Tape Width (Metric): 19.1 mm
  • Tensile Strength (Imperial): 300 Pound-Force Per Square Inch
  • Tensile Strength (Metric): 2068.4 kPa
  • Tensile Strength lb/in (N/100 mm): 9 (158)
  • UV Resistant: No
  • Voltage Rating: 600 V
  • Vulcanizing: Yes

Overview

UPC 05113897905
Long Description 3M Temflex Rubber Splicing Tape 2155 is a conformable, self-fusing, rubber electrical insulating tape. It is designed for low voltage electrical insulating and moisture sealing applications and is compatible with solid dielectric cable insulations.
GTiN 00051138979058
Length 22 ft
Width 3/4 in
Size .75 Inches x 22 Feet
Color Black
Type Self-Fusing
Thickness 30 mil
Backing Material Rubber
Applications For Insulating Wire Splices, Split Bolt Connections and Motor Leads Up to 600 V
Temperature Rating 0 - 80 C
Family Brand Name 3M
Tensile Strength 300 lb/in
Sub Brand Temflex
Material Silicone Rubber
Max Operating Temperature 176 degrees F
Overall Length 22 ft
