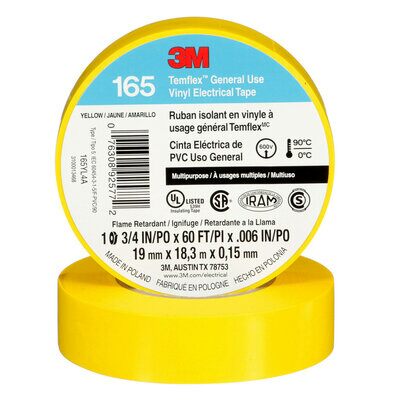

3M 165YL4A TEMFLEX VINYL ELECTRICAL TAPE YELLOW 3/4 IN X 60 FT (19 MM X 18 M) 6 MIL

Features

• Resists abrasion, moisture, alkalis, solvents and acids
• Flame-retardant and inhibits the corrosion of electrical conductors
• Made of durable PVC
• Compatible with rubber and synthetic splicing compounds
• Withstands a temperature range of 32 to 194 °F (0 to 90 °C)
• UL Listed, CSA and VDE Certified

Specifications

• Adhesion to Steel: en-CA: 18 oz/in - en-US: 18 oz/in - fr-CA: 18 oz/in
• Adhesive Type: Rubber
• Application: Insulation
• Backing Material: Polyvinyl Chloride
• Chemical Resistant: Yes
• Dielectric Strength (V/mil): 1000
• Elongation at Break: 200
• Flame Retardant: Yes
• Maximum Operating Temperature (Celsius): 90 Degree Celsius
• Maximum Operating Temperature (Fahrenheit): 194 Degree Fahrenheit
• Minimum Operating Temperature (Celsius): 0 Degree Celsius
• Minimum Operating Temperature (Fahrenheit): 32 Degree Fahrenheit
• Overall Length (Imperial): 60 ft
• Overall Length (Metric): 18.3 m
• Overall Width (Imperial): 0.75 in
• Overall Width (Metric): 19 mm
• Product Color: Yellow
• Product Type: Vinyl Electrical Tapes
• Suitable for High Voltage: No
• Tape Grade: General Use
• Tape Length (Metric): 18.3 m
• Tape Width (Metric): 19 mm
• Total Tape Thickness without Liner (Imperial): 0.006 in
• Total Tape Thickness without Liner (Metric): 0.15 mm
• Voltage Rating: 600 V
