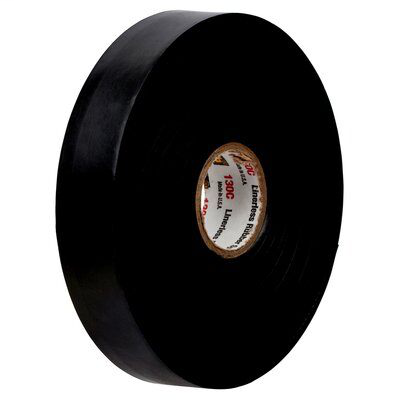

3M 130C-3/4x30FT Linerless Rubber Tape

163 Available for Delivery

Order by for Delivery

Usually available for pickup within 24 Hours

Adding...

Already a Customer? Log in to view your pricing

Manufacturer	3M
Mfg Catalog #	130C-3/4x30FT
Viking Electric Part #	2180

Features

Highly conformable, rubber-resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
Provides an excellent thermal dissipation of splice heat
Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
Withstands temperatures up to 194 °F (90 °C)
ASTM Approved and RoHS 2011/65/EU Compliant

Specifications

Adhesion to Steel: en-CA: N/A - en-US: N/A - fr-CA: N/A
Adhesive Material: Rubber Resin
Adhesive Type: Rubber
Application: Insulation
Application/Industry: Industrial Construction - Solar - Appliance and Fixture - Commercial Construction - Mining - Utility - Maintenance and Repair Operations - Communications - Wind Power
Backing Material: Ethylene Rubber - Ethylene Propylene Rubber
Backing Thickness (Metric): 0.76 mm
Breaking Strength (Imperial): 7.5 lb/in
Color Family: Black
Dielectric Strength: 750 V/mil
Elongation: 850 %
Elongation at Break: 850%
High Temperature Rating: 194°F (90°C)
Insulated: Yes
Insulation: Yes
Insulation Resistance: >10^15 Ohm
Liner/Linerless: Linerless
Material: Linerless EPR
Maximum Operating Temperature (Celsius): 90 Degree Celsius
Maximum Operating Temperature (Fahrenheit): 194 Degree Fahrenheit
Minimum Operating Temperature (Celsius): 0 Degree Celsius
Minimum Order Quantity: 1 Roll
Operating Temperature (Celsius): Up to 90 °C
Operating Temperature (Fahrenheit): Up to 194 °F
Operating Temperature Range (Celsius): 0 °C to 90 °C
Overall Length (Imperial): 30 ft
Overall Length (Metric): 9.1 m
Overall Thickness (Imperial): 30 mil
Overall Thickness (Metric): 0.762 mm
Overall Width (Imperial): 0.75 in
Overall Width (Metric): 19 mm
Product Color: Black
Product Markets: Power Distribution - Electrical MRO - Electrical Construction
Product Type: Rubber and Splicing Tapes
RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
Rolls per Carton: 1
Rolls per Case: 24
Self-extinguishing: No
Self-sticking: Yes
Shelf Life: 5 Year
Specifications: ASTM D-4388 Type 1, 2 & 3 - HH-I- 553C
Specifications Met: HH-I-553C - ASTM D-4325 - ASTM D-4388 Type 1, 2 & 3
Suitable for High Voltage: Yes
Tape Color: Black
Tape Grade: Premium
Tape Length (Metric): 9.1 m
Tape Type: Professional Grade Rubber Tape
Tape Width (Imperial): 0.75 in
Tape Width (Metric): 19.1 mm
Tensile Strength (Imperial): 250 psi
Tensile Strength (Metric): 1723 kPa
Total Tape Thickness without Liner (Imperial): 30 mil
Total Tape Thickness without Liner (Metric): 0.76 mm
Total Thickness: 0.76 mm
UV Resistant: Yes
Voltage Application: High Voltage
Voltage Rating: 69 kV
Vulcanizing: Yes

Overview

UPC	05400741717
Long Description	Scotch Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 F (90 C) with emergency overload up to 266 F (130 C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.
GTiN	00054007417170
Length	30 ft
Width	0.75 in
Size	.75 in x 30 ft
Color	Black
Type	linerless Ethylene Propylene Rubber
Thickness	0.762 mm
Material	Ethylene Propylene Rubber
Product Type	Rubber And Splicing Tapes
Backing Material	Ethlylene Propylene Rubber
Applications	Insulation
Family Brand Name	Scotch
Max Operating Temperature	194 degrees F
Tensile Strength	250 Pound-Force Per Square Inch
Sub Brand	Scotch
Overall Length	30 ft
Adhesive Type	Rubber
